Hafele 941.00.004 Sliding door fitting, Top Hung System EKU Porta 100 GW/GWF-Synchro

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.00.004

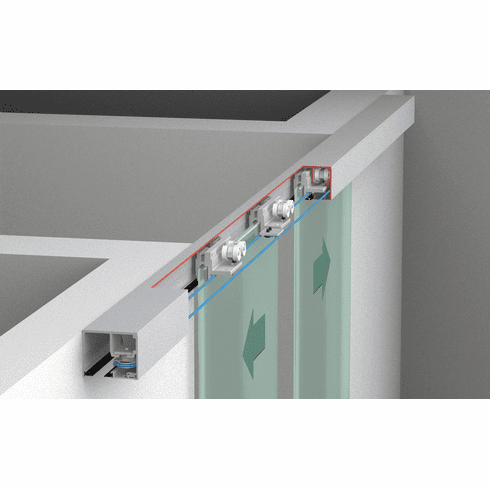

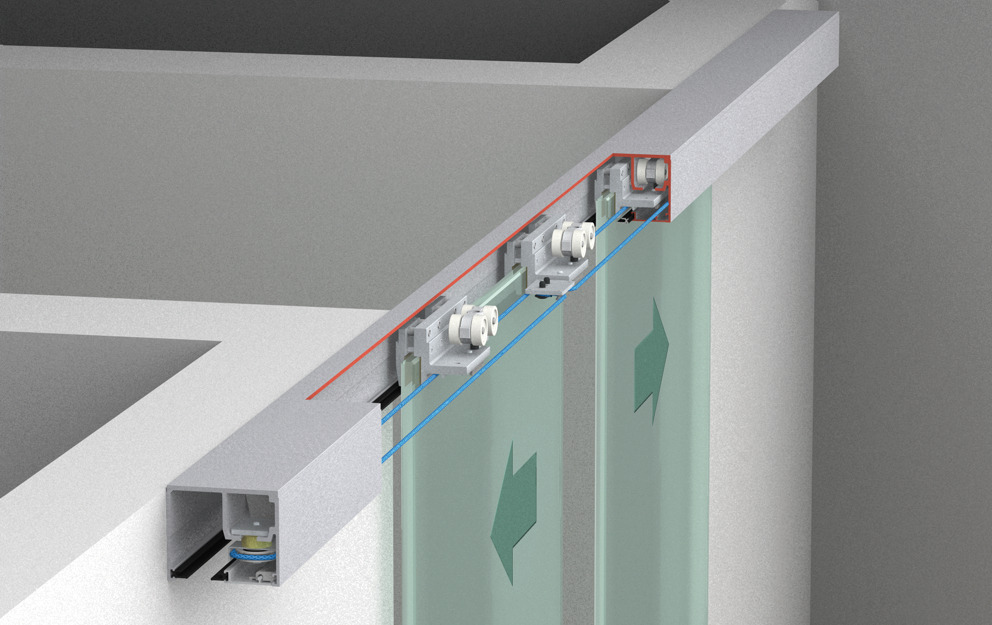

  Product Title: Sliding door fitting, HAWA Porta 100 GW/GWF Synchro, set, Top Hung System, Synchro guide with cord

  Category: Sliding door fitting, HAWA Porta 100 GW/GWF Synchro, set, Top Hung System, Synchro guide with cord

  Item Details …

  - Smooth quiet operation

  - Maintenance-free

  - Rattle-free bottom guide

  - Simple installation

  - No glass cut-outs required

  - Vertical adjustment without removing the glass door

  - Model : 100 GW/GWF Synchro

  - Version : Synchro guide with cord

  - Door weight max. : 220 lbs

  - For door height (inches) : max. 8' 10 5/16"

  - For door width (inches) : max. 5' 3"

  - For min. glass thickness (inches) : 5/16”, 13/32”, 15/32” and 1/2”

  - Load bearing capacity : 220 lbs.

  - Area of application : Synchro guide with rope

  - For door material : glass

  - Suitable for : Hawa Porta 100 GW/GWF

  - For glass type : Tempered safety glass

  - For glass thickness with tempered safety glass : 8 mm, 10 mm, 12 mm

  - For door weight : ?100 kg

  - For door width : ?1,200 mm

  - For door height : ?2,700 mm

  - Controller installation options : Ceiling installation, Integrated ceiling installation

  - Order reference

  - Please order 2 basic sets for 2 bi-parting sliding doors.

  - Set components cannot be ordered individually.

  - Supplied with:

  - 2 follower

  - 1 rope, 10 m

  - 2 deflection rollers

  - 1 glass edge protection profile 2,700 mm

  - 2 cylinder screws


  Additional Information …

  We recommend using the glass edge protection profile.
