Product Information
Description
Manufacturer: Hafele
Item: 941.00.005

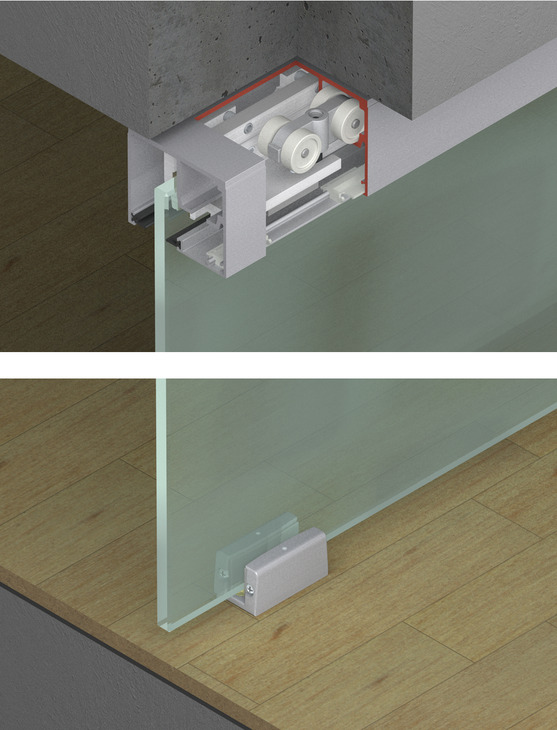

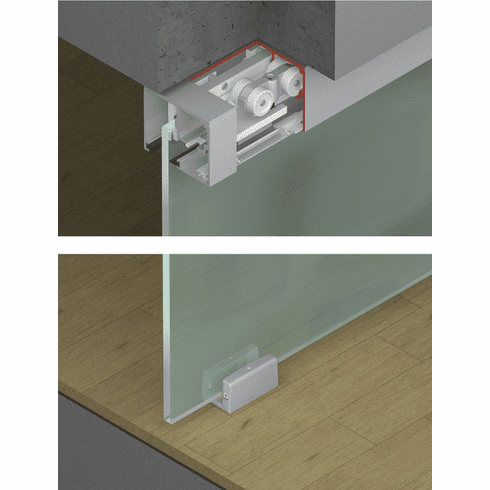

Product Title: Sliding door fitting, Hawa Porta 100 GW/GWF, set, for 1-leaf glass sliding doors, surface mounted or flush fitted in ceiling, for door weight up to 100 kg, Clear anodized
Category: Sliding door fitting, Hawa Porta 100 GW/GWF, set, for 1-leaf glass sliding doors, surface mounted or flush fitted in ceiling, for door weight up to 100 kg
Item Details …
- Number of doors per system max. : 1
- Number of doors : 1.00
- For door material : glass
- Soft closing mechanism : with soft closing mechanism (optional)
- For door weight : ?100 kg
- For door width : ?1,600 mm
- Controller installation options : Ceiling installation
- For glass thickness with tempered safety glass : 8 mm, 10 mm, 12 mm, 12.7 mm
- Adjustment facility : Height adjustment: ±3 mm
- Area of application : for 1-leaf sliding doors (for Hawa Porta 100 GW)for 1-leaf and 2-leaf sliding doors with fixed glass fixing profile (for Hawa Porta 100 GWF)synchronized opening of 2 doors (Hawa Porta 100 GW/GWF Synchro)
- For door height : ?2,700 mm
- For glass type : Tempered safety glass
- Running position : Top
- Door processing : With recess
- Supplied with:
- 2 running gears
- 2 suspension screws M8 x 25
- 2 clamping shoes
- 2 track buffers (1 with retaining spring, 1 without retaining spring)
- 1 wall buffer
- 1 clear threshold floor guide
- 12 panel clips
- 1 set of fixing screws
Additional Information …
Soft and self closing mechanism (optional for Hawa Porta 100 GW/GWF)Data Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.220-1.221.pdf
Hafele 941.00.005 EKU Porta 100 GW Fitting Set- Hardware > Building Materials > Door Hardware
- Hardware,Hafele,500-3000
- Brand: Hafele
- Part#: 941.00.005
- Condition: new
Required Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:

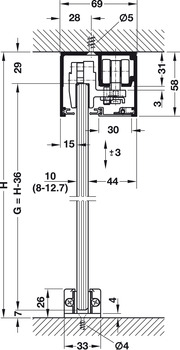

Upper Track, Pre-drilled, (2 23/32 x 2 9/32") 69 x 58 mm (choose one):for Hawa Porta 100 GW, Aluminum, length: 2.5 m (8' 2 7/16")
for Hawa Porta 100 GW, Aluminum, length: 3.5 m (11' 5 25/32")
for Hawa Porta 100 GW, Aluminum, length: 6 m (19’ 8 1/4”)941.00.425
941.00.435
941.00.460Click to order
Click to order
Click to order
Guide Channel, Lower, Pre-drilled (choose one):For Hawa Porta 100 GWF/GF/GFO, Anodized, length: 2.5 m (8’ 2 7/16”)
For Hawa Porta 100 GWF/GF/GFO, Anodized, length: 3.5 m (11’ 5 13/16”)
For Hawa Porta 100 GWF/GF/GFO, Anodized, length: 6 m (19’ 8 1/4”)
For Hawa Porta 100 GWF/GF/GFO, Black anodized, length: 2.5 m (8’ 2 7/16”)
For Hawa Porta 100 GWF/GF/GFO, Black anodized, length: 3.5 m (11’ 5 13/16”)941.01.725
941.01.735
941.01.760
941.01.800
941.01.801Click to order
Click to order
Click to order
Click to order
Click to order

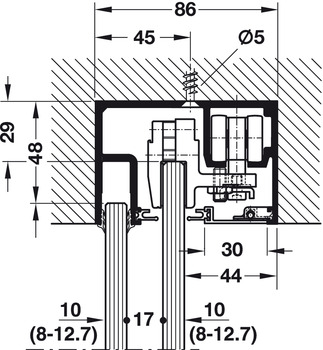

Running track, With fixed glass fixing profile (choose one):(3 3/8 x 2 9/32") 86 x 58 mm, clear anodized, length: 2.5 m (8’ 2 7/16”)
(3 3/8 x 2 9/32") 86 x 58 mm, clear anodized, length: 3.5 m (11’ 5 13/16”)
(3 3/8 x 2 9/32") 86 x 58 mm, clear anodized, length: 6 m (19’ 8 1/4”)
(3 3/8 x 2 9/32") 86 x 58 mm, black anodized, length: 2.5 m (8’ 2 7/16”)
(3 3/8 x 2 9/32") 86 x 58 mm, black anodized, length: 3.5 m (11’ 5 13/16”)941.00.256
941.00.356
941.00.606
941.00.614
941.00.615Click to order
Click to order
Click to order
Click to order
Click to order
Optional Accessories:- End Cap Set, for Upper Track Only
- Sliding door fitting, HAWA Porta 100 GW/GWF Synchro, set
- Screw Set, to Mount Upper Track onto Angle Profile, up to 2.5 m (8' 2 7/16")
- End Cap Set, to Mount Upper Track onto Angle Profile, up to 2.5 m (8' 2 7/16")
- Wall Mounting Angle Profile, Pre-drilled
- Seal, Black, Plastic
- Clip-on Fascia, (1 3/16 x 21/34") 30 x 8 mm
- Fixing Set, for Support Profile and Fixed Glazing Profile
- Disposable Cover, For protecting the track e.g. during plastering work
- Wall Profile, 15 x 14 mm (5/8 x 9/16")
- Sealing Profile, for 8 and 10 mm (5/16” and 3/8”) Glass
- Milling Jig, For Hawa Porta 100 GW/GWF
- Glass Door Lock, Toplock for European Profile Cylinder
- Fastening Bolts and Nuts, For Angle Profile, Junior 40
