Hafele 941.00.001 Sliding Door Hardware, EKU Divido 100 GRM, set Top Hung System

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.00.001

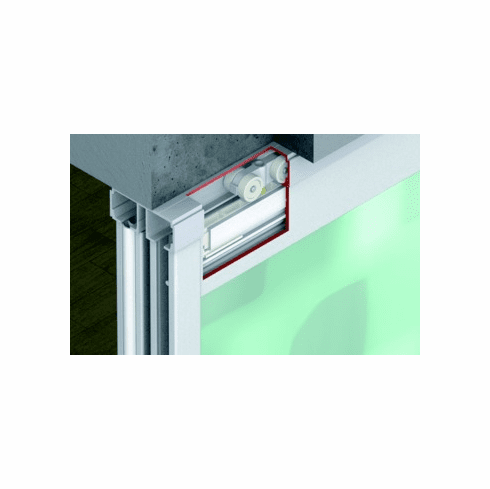

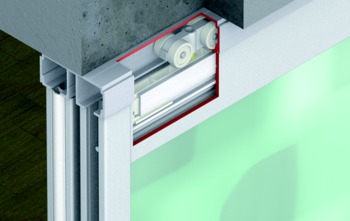

  Product Title: Sliding Door Hardware, Hawa Divido 100 GRM, set, Top Hung System

  Category: Sliding Door Hardware, Hawa Divido 100 GRM, set, Top Hung System

  Item Details …

  - Allows for wood and glass sliding door combinations

  - Number of doors per system max. : 4

  - Number of doors : 2.00

  - For door material : frame doors

  - Model : 100 RMO

  - For door weight : ?100 kg

  - For door width : ?1,200 mm

  - Material/finish : Running gear: Plastic

  - Controller installation options : Ceiling installation

  - For door thickness : ?30 mm

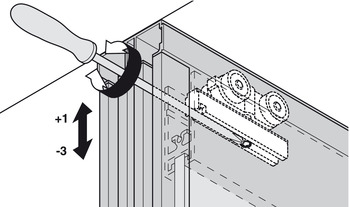

  - Adjustment facility : Height adjustment: -3?–?1 mm, Door height adjustable

  - For door thickness min. : Aluminum frame: 1 3/16"

  - Load bearing capacity : 220 lbs.

  - For door width (inches) : max. 3' 11 1/4"

  - For door height (inches) : max. 9' 1/4"

  - Height adjustment : 3/64”/-1/8”

  - Area of application : For 1 sliding door without the upper running tracks

  - For door height : ?2,750 mm

  - Running position : Top

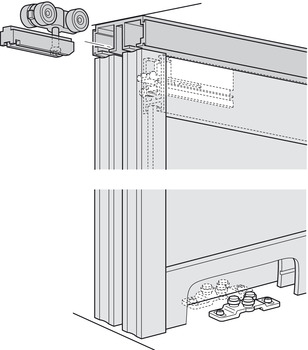

  - Supplied with:

  - 2 x running gear

  - 2 x suspension bolt

  - 2 x carrier block

  - 2 x suspension profile

  - 2 x door stopper

  - 1 x lower guide

  - 1 x set of fixing screws


  Additional Information …

  For door widths greater than 900 mm (35 7/16”) it is recommended to use an additional lower guide.

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.234-1.235.pdf

  Hafele 941.00.001 EKU Divido 100 GRM Fitting Set


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 941.00.001
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

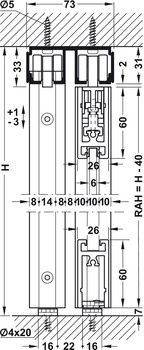

  Triple Running Track, Pre-drilled, 111 x 31 mm (W x H) (choose one):


  • for Hawa Divido, Length: 2.5 m (8’ 2 7/16”) for Hawa Divido, Length: 3.5 m (11’ 5 13/16”) for Hawa Divido, Length: 6 m (19’ 8 1/4”)

    941.13.425 941.13.435 941.13.460

    Click to order Click to order Click to order



  Dual Running Track, Aluminum, Anodized (choose one):


  • for Hawa Divido, Length: 2.5 m (8’ 2 7/16”) for Hawa Divido, Length: 3.5 m (11’ 5 13/16”)

    941.12.925 941.12.935

    Click to order Click to order



  Optional Accessories:



  • Supplementary Sets, For Hawa Divido 100 H/100 HM, stacking
  • Upper Track Cleaning Tool, For Hawa Porta, Divido
  • Soft Closer, For Hawa Porta, Hawa Divido 60/100
  • Cover Cap, for Notched Service Access in Track
  • Milling Jig, for Notched Service Access in Track
