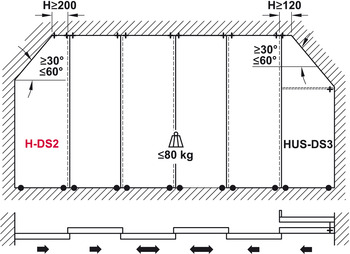

Hafele 940.92.001 Sliding Door Hardware, EKU Divido 80 H and 80 H-DS1/DS2, set Bottom running, for 1-leaf to 4-leaf wooden sliding doors, suitable for sloping ceilings, ceiling installation, for door weights up to 80 kg
Product Information
Description
Hafele 940.92.001 Sliding Door Hardware, EKU Divido 80 H and 80 H-DS1/DS2, set
Bottom running, for 1-leaf to 4-leaf wooden sliding doors, suitable for sloping ceilings, ceiling installation, for door weights up to 80 kg
Additional items required to complete installation:

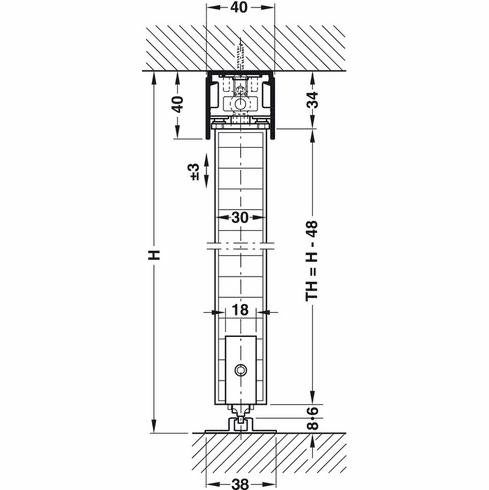

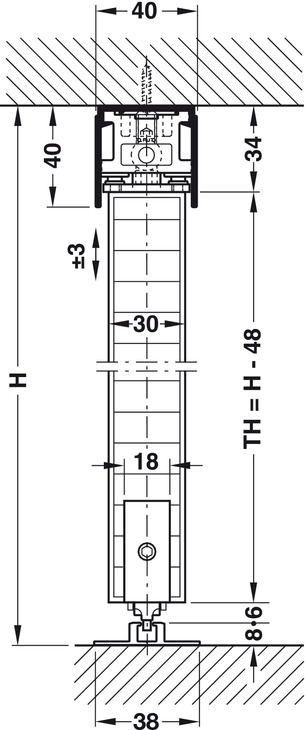

Upper Guide Channel, Single, 40 x 40 (1 9/16" x 1 9/16")

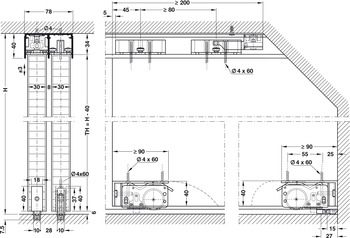

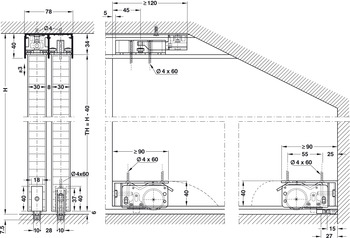

Upper Guide Channel, Dual, 78 x 40 (3 1/16" x 1 9/16")
Lower Running Track, Single, Recessed, 13 x 8 (33/64" x 5/16")
Mounting Profile, for Single Lower Running Track, Recessed, 51 x 10 (2" x 3/8")
Lower Running Track, Single, Surface-mounted, 38 x 8 mm (1 1/2" x 5/16")
Lower Running Track, Dual, Surface-mounted, 68 x 8 mm (2 11/16" x 5/16")Model : EKU Divido 80 H Basic set For 1-leaf sliding doors,
for wooden doors, without running and guide trackApplication : For 1-leaf to 4-leaf sliding doors Door weight : max. (176 lbs.) 80 kg For door height : max. (7' 10 1/2") 2400 mm For door width : max. (6' 6 3/4") 2000 mm For door thickness : (1 3/16") 30 mm Height adjustment : +/- (1/8) 3 Supplied with : 2 Running gears
2 guide carriages
2 adapters for running gear
2 intermediate buffers and door buffers
2 guide track buffers
1 track end piece
Optional items:
Mortise locks for sliding doors
Door seals for sliding doors
Clip Profile, For mounting rail and double running track, 25 x 6 mm (1 x 1/4")
Center Door Stop, Installed into Upper Guide ChannelsSpecifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.50-1.51.pdf
Hafele 940.92.001 EKU Divido 80 HSU Fitting Set- Hardware > Building Materials > Door Hardware
- Hardware,Hafele,50-500
- Brand: Hafele
- Part#: 940.92.001
- Condition: new
