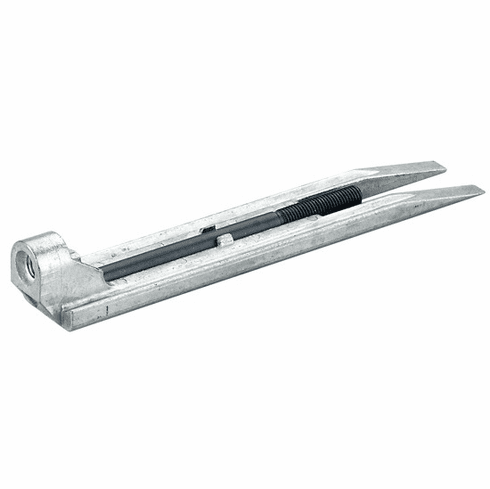

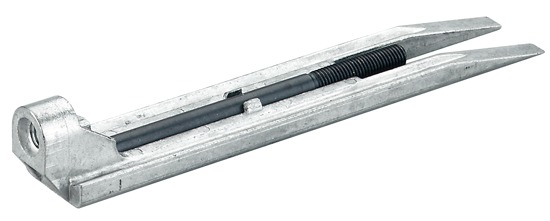

Hafele 940.80.050 Assembly Wedge, for Doors Running in the Ceiling 2 pcs per sliding door

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.80.050

  Product Title: Assembly Wedge, for Doors Running in the Ceiling, 2 pcs per sliding door, set of 2 pieces for 1 sliding door

  Category: Assembly Wedge, for Doors Running in the Ceiling, 2 pcs per sliding door, set of 2 pieces for 1 sliding door

  Item Details …

  - Suitable for : Hawa Junior 120 B and Hawa Silenta 150 B

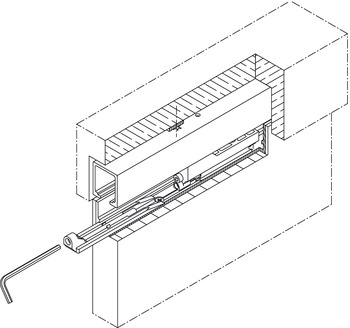

  - Area of application : Suitable for use with Hawa Junior 120/B, Hawa Silenta 150/B and Hawa Junior 250/Ballows hooking in and removing sliding doors without disassembling the frame and lining

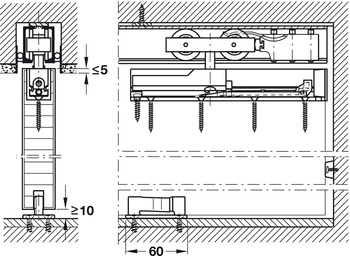

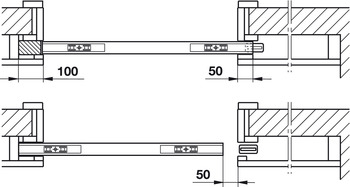

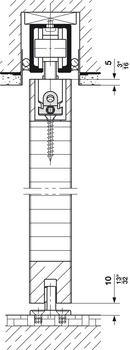

  - Installation : When used for a pocket door application either the cover panel has to be designed so it can be removed or a removable 100 mm (4”) wide stop strip has to be mounted on the lock side.The sliding door should only reach 5 mm (3/16”) into the ceiling or the top jambWhen closed, the sliding door should not protrude more than 50 mm (2”) into the pocket

  - Packing contents : Set of 2 pieces for 1 sliding door

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.123

  TCH_Architectural_Hardware_2022|Page 1.127

  TCH_Architectural_Hardware_2022|Page 1.231

  TCH_Architectural_Hardware_2022|Page 1.333



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.60-1.61.pdf

  Hafele 940.80.050 HAWA Mounting Wedge


  • Hardware > Hardware Accessories
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 940.80.050
  • Condition: new
