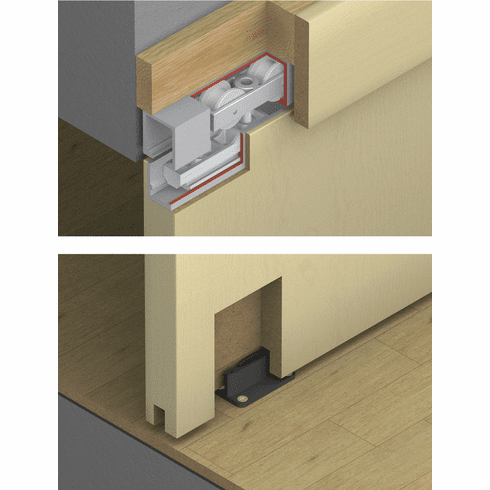

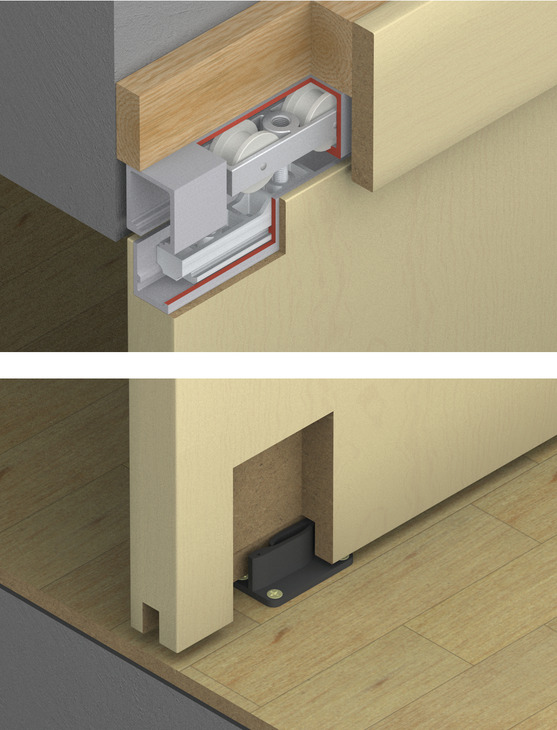

Hafele 940.80.047 Sliding Door Hardware, HAWA Junior 80/B, set Top Hung System, without running track

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.80.047

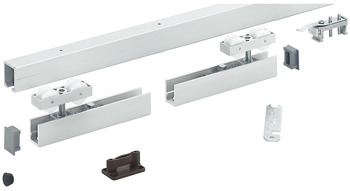

  Product Title: Sliding Door Hardware, HAWA Junior 80/B, set, Top Hung System, without running track

  Category: Sliding Door Hardware, HAWA Junior 80/B, set, Top Hung System, without running track

  Item Details …

  - • Outstanding durability

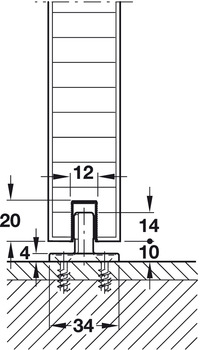

  - • Rattle-free bottom guide

  - • Suspension with carrier profile

  - • Smooth quiet operation

  - • Heights adjustable

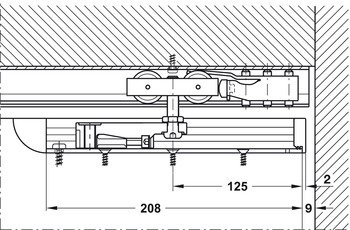

  - • Door stop with adjustable retention spring

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Model : 80/B

  - For door weight : ?80 kg

  - Controller installation options : Ceiling installation

  - For door thickness : ?35 mm

  - Adjustment facility : Height adjustment: ±3 mm, Height ±3 mmtrack buffer with adjustable retaining spring

  - For door thickness min. : 1 3/8"

  - Door weight max. : 176 lbs

  - Area of application : For 1 and 2 sliding wood doors

  - Suitable for : Minimum installation height

  - Running position : Top

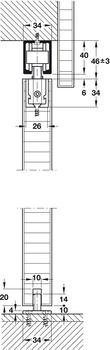

  - Installation : Suspension with recessed support profile

  - Standard : Certified in compliance with EN 1527:1998

  - Classification in compliance with EN 1527 : -|6|2|0|-|0|-|1|3

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Junior 80B Mounting Instructions

  TCH_Architectural_Hardware_2022|Page 1.95



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, Pre-drilled (choose one):


  • for Hawa Symmetric, Telescopic, Junior, 1.4 m (4’ 7 1/8”) for Hawa Symmetric, Telescopic, Junior, 1.6 m (5’ 3”) for Hawa Symmetric, Telescopic, Junior, 1.8 m (5’ 10 7/8”) for Hawa Symmetric, Telescopic, Junior, 2 m (6’ 6 3/4”) for Hawa Symmetric, Telescopic, Junior, 2.2 m (7’ 2 5/8”) for Hawa Symmetric, Telescopic, Junior, 2.5 m (8’ 2 7/16”) for Hawa Symmetric, Telescopic, Junior, 3 m (9’ 10 1/8”) for Hawa Symmetric, Telescopic, Junior, 4 m (13’ 1 1/2”) for Hawa Symmetric, Telescopic, Junior, 6 m (19’ 8 1/4”)

    940.80.140 940.80.160 940.80.180 940.80.200 940.80.220 940.80.250 940.80.300 940.80.400 940.80.600

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in (choose one):


  • for Hawa Junior, Symmetric, Telescopic, Ordena, (4' 3 1/8") 1.3 m

    940.41.130

    Click to order



  Optional Accessories:



  • Bar Bolt Lock, Hawa Doorfix
  • Soft and Self Closing Mechanism, SoftMove 80 for Hawa Junior 80
  • Sealing Profile, Drilled
  • Assembly Wedge, for Doors Running in the Ceiling
