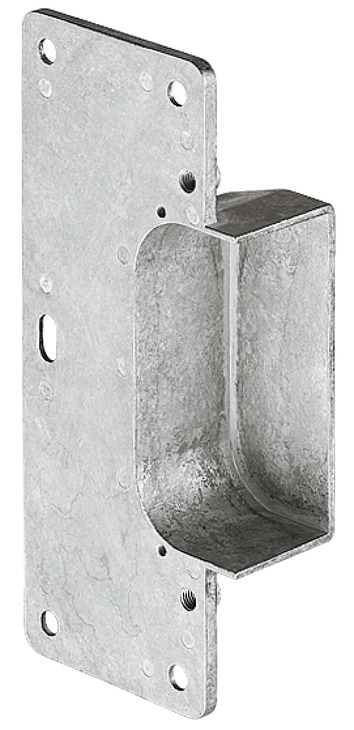

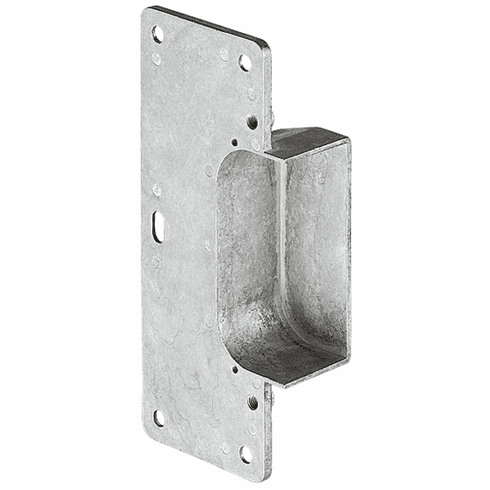

Hafele 927.91.490 Receiving Element, for H7 Concealed Hinge Startec, Zinc alloy

Product Information

• Description

  Manufacturer: Hafele
  Item: 927.91.490

  Product Title: Receiving Element, for H7 Concealed Hinge, Startec, Zinc alloy

  Category: Receiving Element, for H7 Concealed Hinge, Startec, Zinc alloy

  Item Details …

  - Suitable for : H7 door hinge

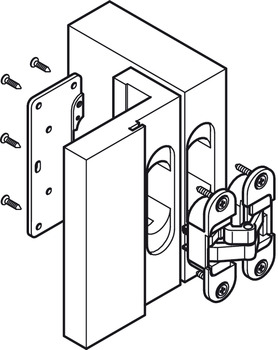

  - Area of application : For H2/H7 concealed mortise hingesfor wooden lining frames

  - Material : Zinc alloy

  - Mounting : For DIN left and DIN right hand use

  - Order reference

  - Befestigungsmaterial im Lieferumfang enthalten.


  Additional Information …

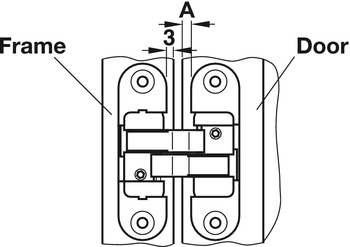

  Different recess dimensions when using hinge pockets!

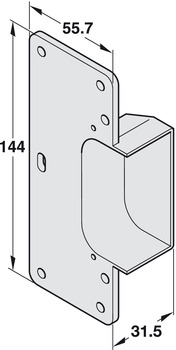

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 4.34



• Specifications

  Hafele 927.91.490, 927-91-490, 92791490, 927.91


  Specifications/Hafele Catalog - Page# AH5.12: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Door Hinges Catalog Return to: All Hafele Catalogs
