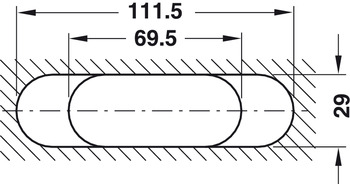

Hafele 927.91.558 Door Hinge, Startec H7 3D adjustable, size 111.5 mm, Gold polished

Product Information

• Description

  Hafele 927.91.558 Door Hinge, Startec® H7
  3D adjustable, size 111.5 mm, Gold polished



  Application : For flush interior wood doors - 3D Adjustable

  Suitable for : Left-hand or right-hand installation

  Door weight : ‰¤ 50 kg (110 lbs.) with 2 door hinges
  ‰¤ 70 kg (154 lbs.) with 3 door hinges

  Opening angle : ‰¤180 °

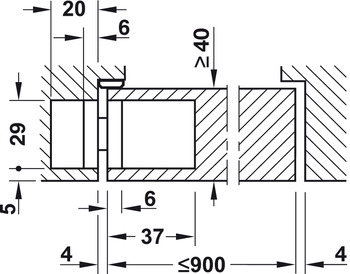

  Door width : (‰¤ 35 7/16") ‰¤900 mm

  Door height : (‰¤8' 10 5/16") ‰¤ 2,700 mm

  Door thickness : ‰¥ (1 9/16") 40 mm

  Adjustment : Continuously three dimensional adjustable; Height ± 3.0 mm (1/8€�); Lateral ±3 mm/-2 mm (+1/8€�/-1/16"); On contact ± 1 mm (1/32€�)

  Material : zinc alloy



  Optional items:
  Hinge pocket for lining frames
