Hafele 927.91.544 Door Hinge, Startec H2 Satin chrome, left-hand or right-hand

Product Information

• Description

  Manufacturer: Hafele
  Item: 927.91.544

  Product Title: Türband, Startec H2, verdeckt liegend, für ungefälzte Innentüren bis 45/60 kg, 3D-verstellbar, Größe 95 mm, zinc alloy, chrome plated matt

  Category: Door Hinge, Startec® H2, 3D adjustable, size 95 mm

  Item Details …

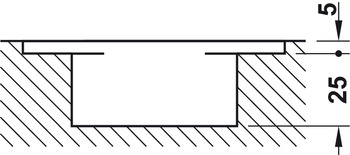

  - When using the receiving element the milling dimensions may change.

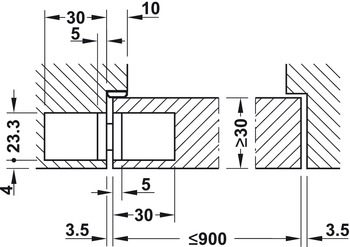

  - Door width max. : 900.00 mm

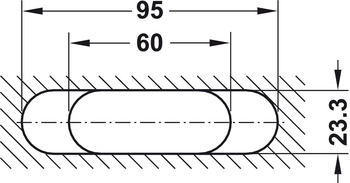

  - Flange shape : rounded

  - Flange width : 23.3 mm

  - Material : Zinc alloy

  - Model : H2

  - Flange height : 95 mm

  - Door weight max. : 110 lbs with 2 door hinges; ? 132 lbs with 3 door hinges

  - Door height min. : 82 11/16” with 4 hinges

  - For door width (inches) : ? 35 7/16"

  - For door thickness min. : 1 1/4"

  - Area of application : For flush interior wood doors - 3D Adjustable

  - For door type : Wooden door leaf

  - For frame type : Wooden frame

  - Max. door weight for 2 hinges : 45.00 kg

  - Max. door weight for 3 hinges : 60.00 kg

  - Opening angle : 180.00 °

  - Door height max. : 2,000.00 mm

  - Door height max. : 78 3/4"

  - Door thickness : ?32 mm

  - Adjustment facility : 3DContinuous, Side: -2?/?+3 mm, Height: ±2.5 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 2|7|2|1|1|4|0|7

  - Order reference

  - Hex key for adjustment supplied. Fixing material supplied.


  Additional Information …

  Different recess dimensions when using hinge pockets for lining frames.4 door hinges must be used for door height of 2,100 ?mm and above.
