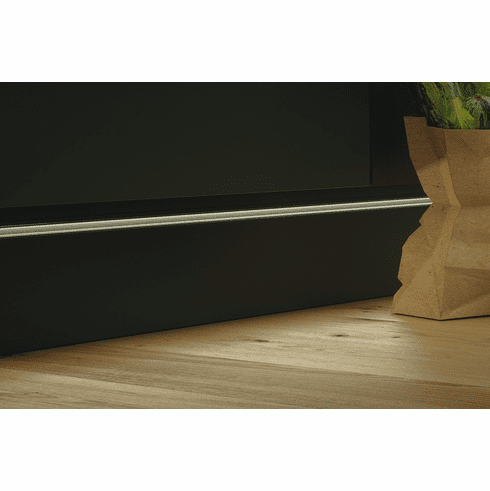

Hafele 833.94.203 Profile 1104, Aluminum, Black Finish with Opal Lens / 92 Inches

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.94.203

  Product Title: Profile for recess mounting, Häfele Loox5 Profile 1104, for LED strip lights, Aluminum, Length: (92") 2336 mm, black

  Category: Profile for recess mounting, Häfele Loox5 Profile 1104, for LED strip lights, Aluminum

  Item Details …

  - Light permeability : 60?–?70?%

  - Length : 2,336.00 mm

  - Length (inch) : 92"

  - Width (inch) : Diffuser: 5/16"

  - Material : Profile: Aluminum, Diffuser: Polycarbonate

  - Internal width : 8.00 mm

  - Diffuser width : 8.00 mm

  - Routing width : 10.90 mm

  - Routing depth : 12.00 mm

  - Installation : For recessing

  - Supplied with:

  - 1 profile

  - 1 diffuser


  Additional Information …

  For LED strip lights up to a width of max. 5 mm. Slide-in 7 mm wide clips from the side before installing the profile.The surface that is to be bonded must always be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free!DiffusersThe opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with the black version. If required, please order alternative diffusers in black or transparent separately.
