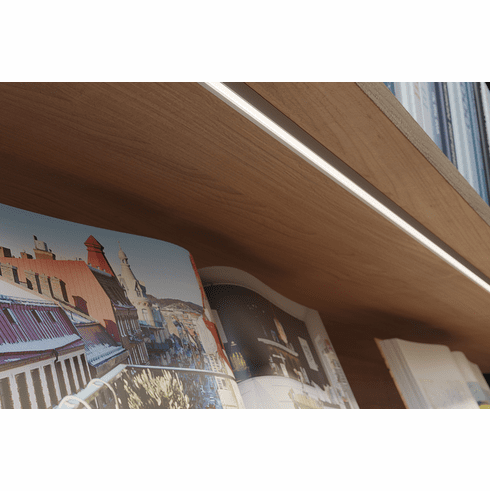

Hafele 833.94.204 Profile 1105, Aluminum, Silver Finish with Opal Lens / 92 Inches

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.94.204

  Product Title: Profile for recess mounting, Häfele Loox5 Profile 1105, for LED strip lights, Asymmetrical light distribution, internal width 11 mm, Length: (92") 2336 mm, silver colored

  Category: Profile for recess mounting, Häfele Loox5 Profile 1105, for LED strip lights, Asymmetrical light distribution, internal width 11 mm

  Item Details …

  - Asymmetrical light distribution provides a glare-free light source.

  - Light permeability : 60?–?70?%

  - Width (inch) : Diffuser: 7/16"

  - Material : Profile: Aluminum, Diffuser: Polycarbonate

  - Internal width : 11.00 mm

  - Diffuser width : 11.00 mm

  - Routing width : 13.90 mm

  - Routing depth : 12.00 mm

  - Installation : For recessing

  - Installation reference : Slide-in 10 mm wide clips before installing the profile

  - Supplied with:

  - 1 profile

  - 1 diffuser


  Additional Information …

  For LED strip lights up to 8 mm wide.The surface that is to be bonded must always be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free!DiffusersThe opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with the black version. If required, please order alternative diffusers in black or transparent separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 208



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • End cap, For Häfele Loox5 profile 1105
  • End cap, For Häfele Loox5 profile 1105
