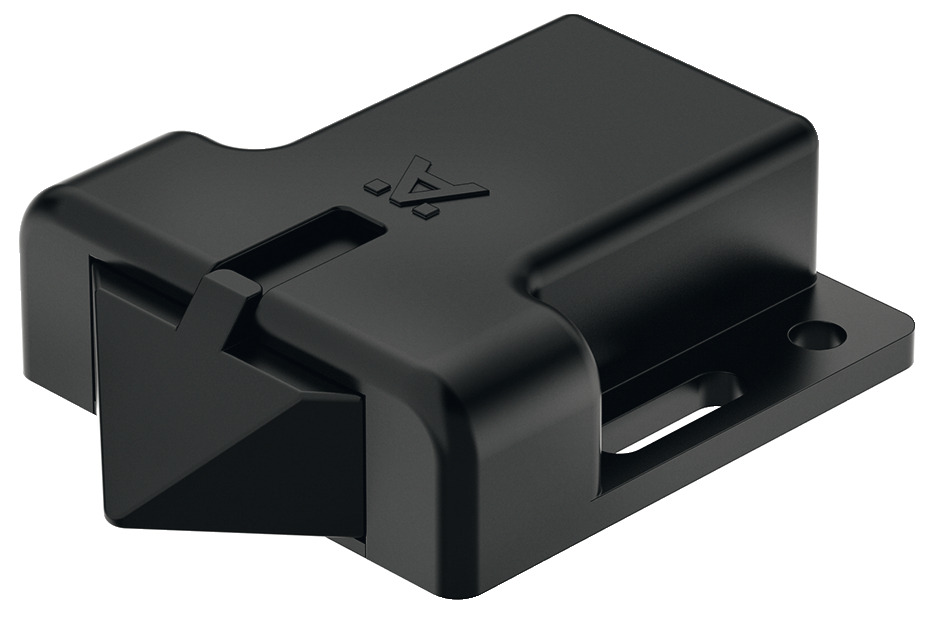

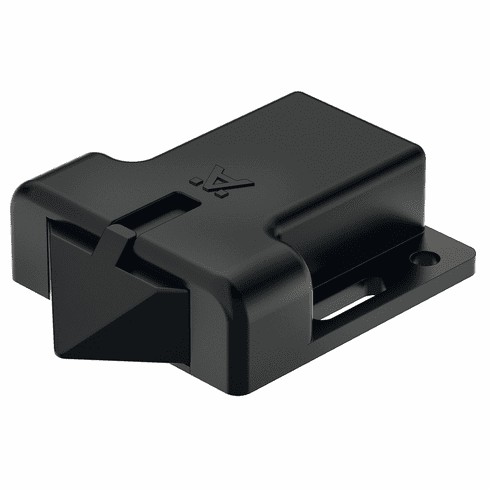

Hafele 833.89.143 Universal Door Contact Switch, Modular Plastic, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.143

  Product Title: Universal Door Contact Switch, Modular, Plastic, black

  Category: Universal Door Contact Switch, Modular, Plastic, black

  Item Details …

  - Version : For lead with snap-in connector

  - Color/finish : Black

  - Switching function : on/off

  - Memory function : No

  - Length : 51.80 mm

  - Length (inch) : 2 1/16"

  - Height (inch) : 9/16"

  - Width (inch) : 1 9/16"

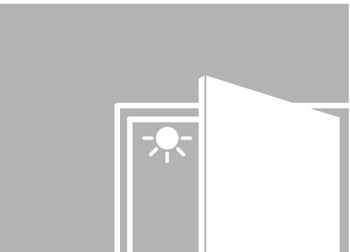

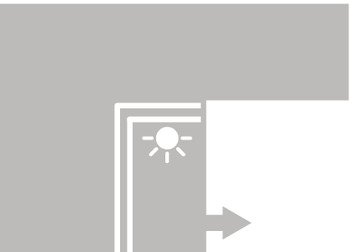

  - Area of application : For hinged or 1-leaf sliding doors

  - Suitable for : For single hinged door or 1-leaf sliding door

  - Material : Plastic

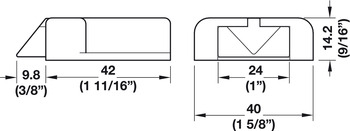

  - Dim. (L x W x H) : 51.8 x 40 x 14.2 mm

  - Degree of protection : IP20

  - Installation : For screw fixing

  - Mounting location : Surface mounting

  - Order reference

  - Please order lead with snap-in connector for modular switches separately. Length 2000 mm (78 3/4"): Cat. No. 833.89.142

  - Supplied with:

  - 1 switch with fixing material

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Loox LED 2048

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 233



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Driver Lead with Snap-In Connector, Häfele Loox, for modular switch (choose one):


  • With snap-in connector, Length: 0.5 m (19 11/16") With snap-in connector, Length: 1 m (39 3/8") With snap-in connector, Length: 2 m (78 3/4")

    833.89.140 833.89.141 833.89.142

    Click to order Click to order Click to order



  Optional Accessories:



  • Extension lead, Häfele-Loox for switch
