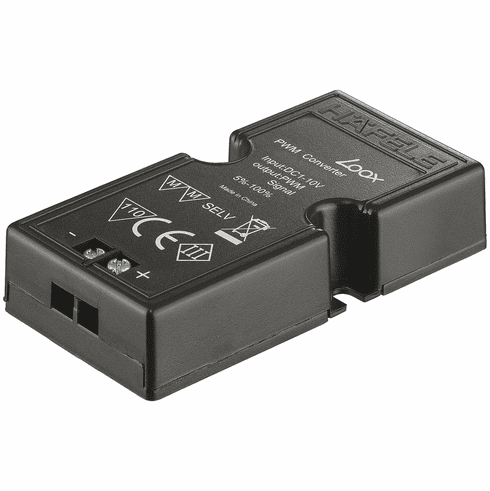

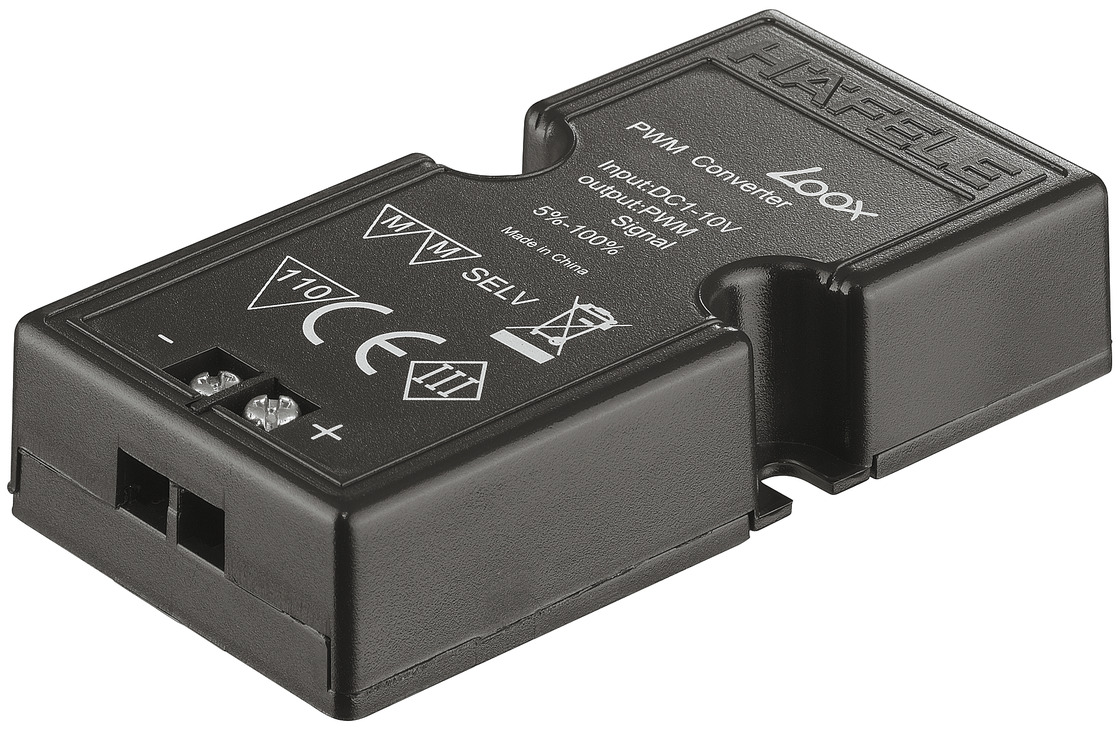

Hafele 833.89.144 Dimmer Interface, 0 - 10 V, Modular for 12 V and 24 V System 1-10 V

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.144

  Product Title: Dimmer Interface, 0 - 10 V, Modular, For 12 V and 24 V System, For 12 V, 24 V and 350 mA systems

  Category: Dimmer Interface, 0 - 10 V, Modular, For 12 V and 24 V System, For 12 V, 24 V and 350 mA systems

  Item Details …

  - Wall dimmers can be used for the control of furniture lights in the design of the house installation

  - Area of application : For dimming lights at a Loox driver 12 V or 24 V using wall dimmer with on/off function and control output 1–10 V

  - Version : For lead with snap-in connector

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 69 x 35 x 13.5 mm

  - Input signal : 1-10 V

  - Installation reference : Dimmer (e.g. Gira 030900) and cavity wall box required on site.

  - Degree of protection : IP20

  - Order reference

  - Please order lead with snap-in connector for modular switches.

  - Supplied with:

  - 1 dimmer interface


  Additional Information …

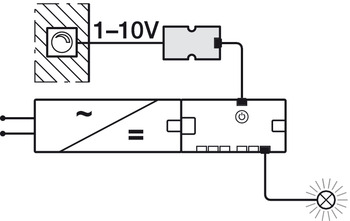

  Use dimmer only, if monochrome lights are connected. Not suitable for the connection of converters or control devices. Direct connection to a normal household dimmer with a 0–10 V control output and connection via a lead with snap-in connector for modular switches to the switching input of a 12 V or 24 V Loox driver or a distributor.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Dimmer interface 1–10 V, modular

  Loox – Electrical Code Compliance

  Step-by-Step Instructions: Installing a Loox Dimmer Interface

  Hafele_Lighting_2024| Page 239



• Videos

  Play: Instruction video
  Play: Step-by-Step Instructions: Installing a Loox Dimmer Interface


• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Driver Lead with Snap-In Connector, Häfele Loox, for modular switch (choose one):


  • With snap-in connector, Length: 0.5 m (19 11/16") With snap-in connector, Length: 1 m (39 3/8") With snap-in connector, Length: 2 m (78 3/4")

    833.89.140 833.89.141 833.89.142

    Click to order Click to order Click to order



  Optional Accessories:



  • Extension lead, Häfele-Loox for switch
