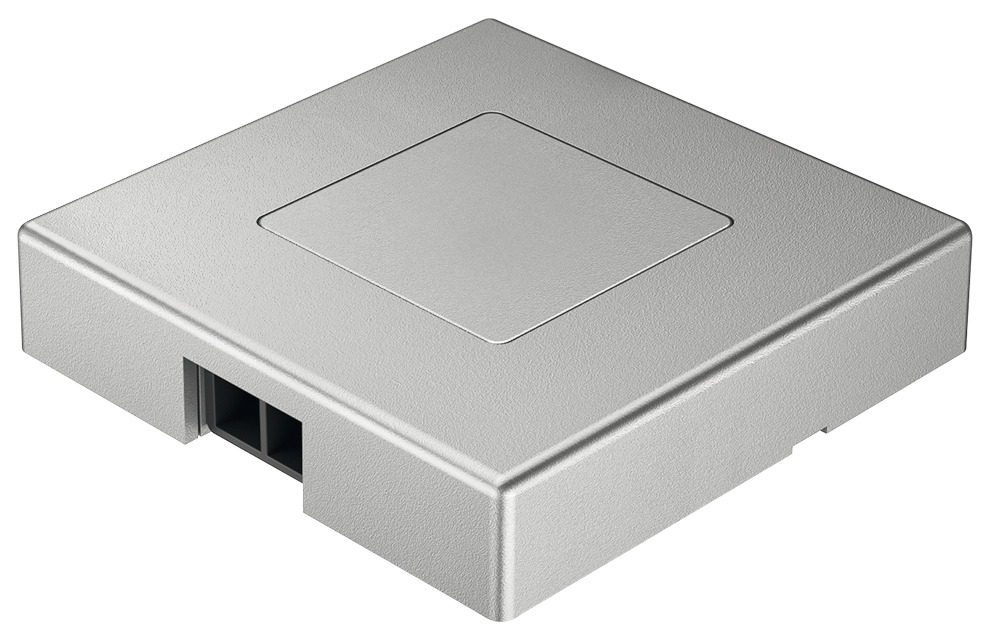

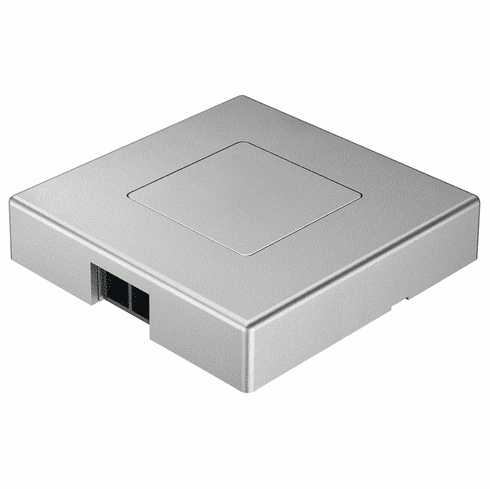

Hafele 833.89.137 Door Sensor Switch, Soft On/Off Switching, Modular Plastic, silver colored

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.137

  Product Title: Door Sensor Switch, Soft On/Off Switching, Modular, Soft on/off switching, Plastic, silver colored

  Category: Door Sensor Switch, Soft On/Off Switching, Modular, Soft on/off switching

  Item Details …

  - Version : Soft on/off switching

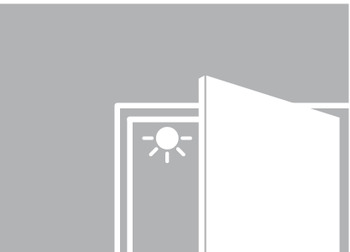

  - Switching function : soft on/off, Door open = light on, door closed = light off

  - Memory function : No

  - Length : 40.00 mm

  - Length (inch) : 1 9/16"

  - Height (inch) : 5/16"

  - Width (inch) : 1 9/16"

  - Sensor range : 0?–?100 mm

  - Area of application : For mounting under cabinet or shelf

  - Material : Plastic

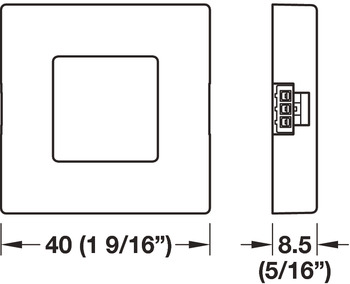

  - Dim. (L x W x H) : 40 x 40 x 8.5 mm

  - Power consumption : 0.30 W

  - Degree of protection : IP20

  - Installation : for glue fixing, With screws

  - Order reference

  - Please order lead with snap-in connector for modular switches separately.

  - Supplied with:

  - 1 switch with fixing material

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Mounting instructions for Loox surface mounted switch, modular design

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024| Page 229
