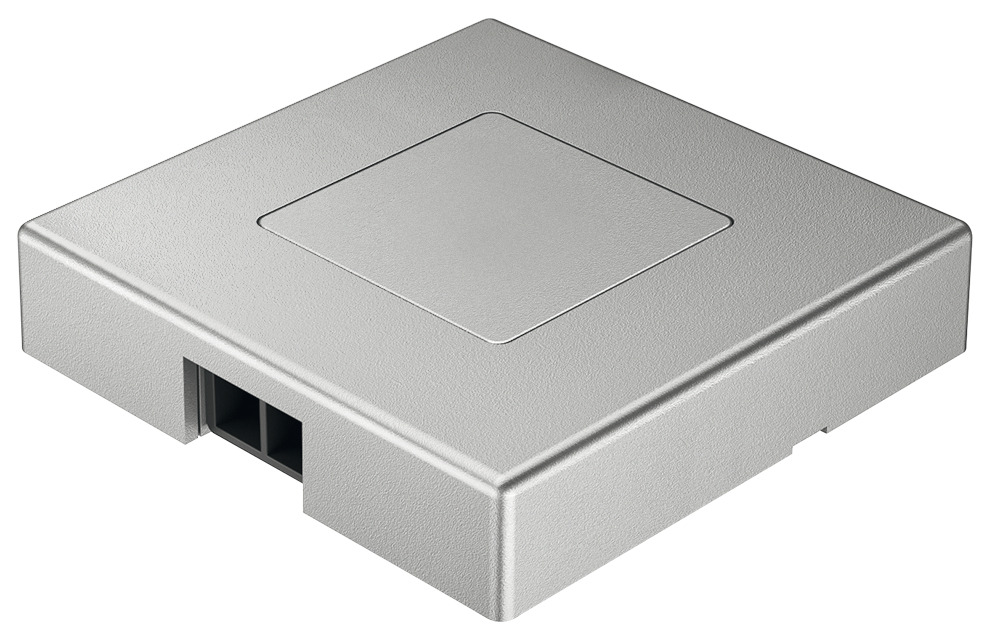

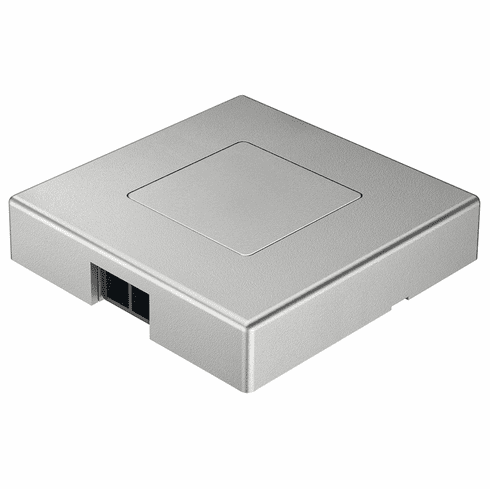

Hafele 833.89.135 Dimmer, Soft On/Off Switching, Modular Touchless, plastic, silver colored

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.135

  Product Title: Dimmer, Soft On/Off Switching, Modular, Soft on/off switching, Touchless, plastic, silver colored

  Category: Dimmer, Soft On/Off Switching, Modular, Soft on/off switching

  Item Details …

  - Version : Soft on/off switching

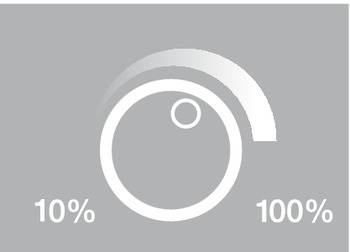

  - Switching function : soft on/off, Dimming

  - Memory function : Yes (also in currentless condition)

  - Length : 40.00 mm

  - Length (inch) : 1 9/16"

  - Height (inch) : 5/16"

  - Width (inch) : 1 9/16"

  - Sensor range : 0?–?80 mm

  - Area of application : For mounting under cabinet or shelf

  - Material : Plastic

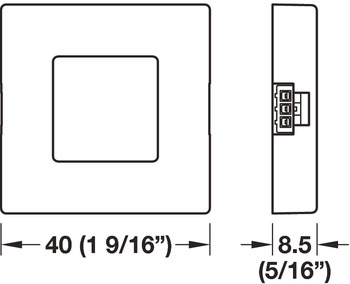

  - Dim. (L x W x H) : 40 x 40 x 8.5 mm

  - Power consumption : 0.30 W

  - Degree of protection : IP20

  - Installation : for glue fixing, With screws

  - Installation reference : On/off state is stored without the need for power supply (memeory function).

  - Order reference

  - Please order lead with snap-in connector for modular switches separately.

  - Supplied with:

  - 1 switch with fixing material


  Additional Information …

  On/off state is stored without the need for power supply (memeory function).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Mounting instructions for Loox surface mounted switch, modular design

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Driver Lead with Snap-In Connector, Häfele Loox, for modular switch (choose one):


  • With snap-in connector, Length: 0.5 m (19 11/16") With snap-in connector, Length: 1 m (39 3/8") With snap-in connector, Length: 2 m (78 3/4")

    833.89.140 833.89.141 833.89.142

    Click to order Click to order Click to order



  Optional Accessories:



  • Extension lead, Häfele-Loox for switch
