Hafele 833.89.133 Captive switch/dimmer, Modular Silver colored plastic

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.133

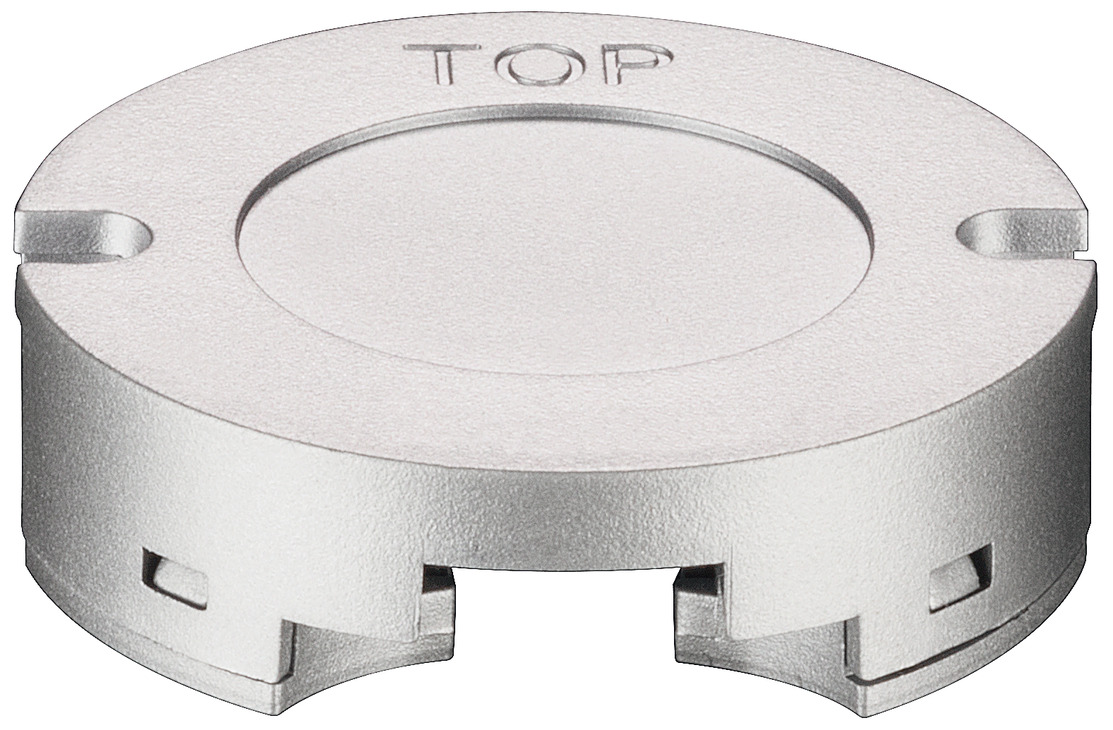

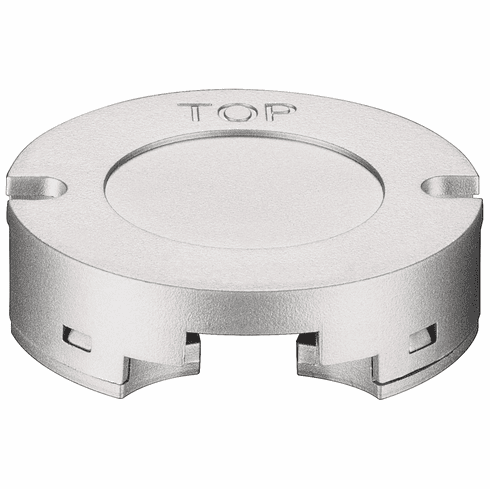

  Product Title: Capacitive switch/dimmer, Modular, On/off switching and dimming, Silver colored plastic

  Category: Capacitive switch/dimmer, Modular, On/off switching and dimming, Silver colored plastic

  Item Details …

  - Manual operation (proximity sensor), memory function

  - Completely invisible operating solution opens up new possibilities in continuously adjustable light control

  - Concealed installation in wood, glass or stone (not in metal materials) at maximum depth of 30 mm (1 3/16”)

  - Works by touch

  - Version : Works by touch

  - Color/finish : Silver colored

  - Switching function : Manually operated (proximity sensor)

  - Memory function : Yes (also in currentless condition)

  - Drill hole ุ : 35.00 mm

  - Area of application : Concealed installation in wood, glass or stone

  - Suitable for : For lead with snap-in connector

  - Material : Plastic

  - Power consumption : 1.00 W

  - Degree of protection : IP20

  - Plug drill hole ุ : 12.00 mm

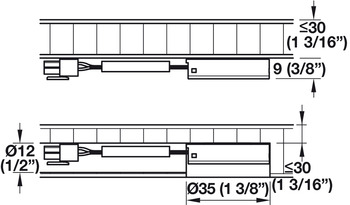

  - Installation depth max. : 30.00 mm

  - Installation : For recessing, With screws

  - Installation reference : Concealed installation in wood, glass or stone (not in ferrous metal materials) at maximum depth of 30 mm (1 3/16”)Works by touch

  - Order reference

  - Please order lead with snap-in connector for modular switches separately.


  Additional Information …

  A distance of min. 500 mm (19 11/16") away from electromagnetic fields (power lines, microwave) must be adhered to.
