Hafele 833.74.380 LED2080 12 volts direct current 9.6 watts per meter RGB (red green blue) 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.380

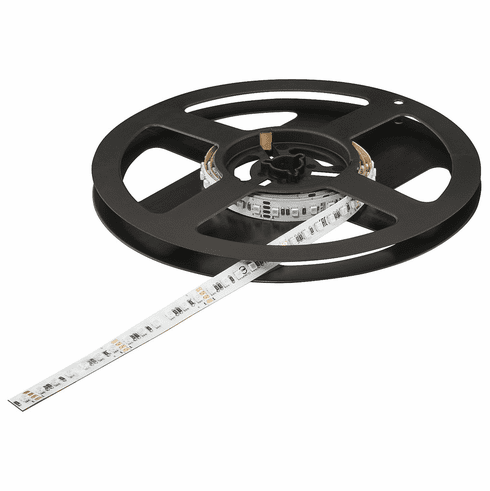

  Product Title: Flexible Strip Light, Häfele Loox5 LED 2080, 12 V, RGB, (3/8") 10 mm, 120 LEDs/m, 9.6 W/m, Length: (196 7/8") 5 m

  Category: Flexible Strip Light, Häfele Loox5 LED 2080, 12 V, RGB, (3/8") 10 mm, 120 LEDs/m, 9.6 W/m, Length: (196 7/8") 5 m

  Item Details …

  - Light color : RGB

  - Nominal voltage : 12.00 V

  - Wattage/m : 9.60 W

  - Luminous flux/m : 530 lm

  - Luminous efficacy : 51 lm/W

  - Max. strip length (visual) : 3.00 m

  - Strip length : 5.00 m

  - Height (inch) : 1/8"

  - Length (inch) : 196 7/8"

  - Width (inch) : 3/8"

  - Dimmable : yes

  - Area of application : Ceiling light direct/indirect, Emotional accents for furniture and furnishings

  - Material : Plastic

  - Color : White

  - Strip width : 10.00 mm

  - Strip height : 2.40 mm

  - Section length : 25.00 mm

  - Contact surface length : 3.80 mm

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately. Aluminum profile is recommended from 9.6 W/ m. Color control via Häfele Connect Mesh 6-way distributor with RGB adapter and remote control or smartphone. Please order separately. Installation of the free Häfele Connect Mesh app is required.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 2080 / 3080

  Safety Notes for LED Strip Lights

  UL Certificate E473379 - US

  Loox – Electrical Code Compliance
