Hafele 833.74.402 LED2072 12V, 2.4 Watt/meter, 4000K, CRI90, 5 meter

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.402

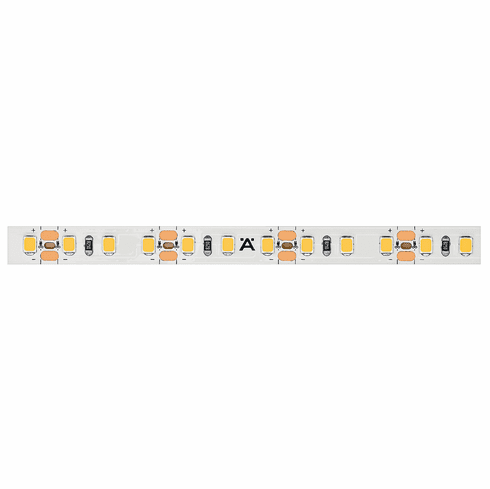

  Product Title: Flexible Strip Light, Häfele Loox5 LED 2072, 12 V, monochrome, (5/16") 8 mm, 120 LEDs/m, 2.4 W/m, Color temperature: 4000 K, luminous efficacy: 100 lm/W, length: 5 m

  Category: Flexible Strip Light, Häfele Loox5 LED 2072, 12 V, monochrome, (5/16") 8 mm, 120 LEDs/m, 2.4 W/m

  Item Details …

  - Narrow, 8 mm

  - Energy efficiency class: A+

  - Section length C: 25 mm (1")

  - Length of contact surface P: 4 mm (3/16")

  - Equipped with high-quality Samsung® LEDs

  - Nominal voltage : 12.00 V

  - Wattage/m : 2.40 W

  - Max. strip length (visual) : 7.00 m

  - Energy efficiency class : F

  - Height (inch) : 1/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Area of application : behind furniture and objects

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Strip height : 1.30 mm

  - Section length : 25.00 mm

  - Contact surface length : 4.00 mm

  - Number of LEDs/m : 120

  - Life time : L80/B10: >30,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Installation reference : Narrow, 8 mmMax. strip length (visual): 7 m (275 19/32")

  - Order reference

  - Please order lead separately.

  - Aluminum profile is recommended from 9.6 W/m.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30 %. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Please calculate max. strip light length on driver in accordance with power output: Length = power output of one driver socket / output per meter.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 2071 / 2072 / 2074 / 3071 / 3072 / 3073 / 3074 / 3075 / 3076

  Safety Notes for LED Strip Lights

  Loox – Electrical Code Compliance
