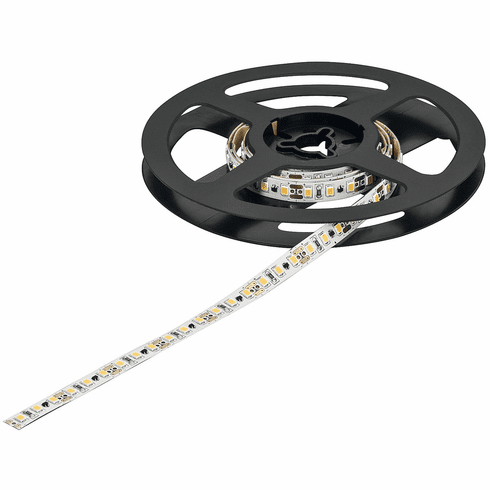

Hafele 833.74.379 LED2077 12 volts direct current 9.6 watts per meter 5000K CRI90 50 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.379

  Product Title: Flexible Strip Light, Häfele Loox5 LED 2077, 12 V, monochrome constant current, (5/16") 8 mm, 120 LEDs/m, 9.6 W/m, Cool white 5000 K, (1968 1/2") 50 m available length

  Category: Flexible Strip Light, Häfele Loox5 LED 2077, 12 V, monochrome constant current, (5/16") 8 mm, 120 LEDs/m, 9.6 W/m

  Item Details …

  -

  - Häfele constant current technology

  -

  - Uniform brightness over the entire band length

  - Longer service life, visual band length, luminous efficiency

  - Protected from short-term voltage peaks up to 16 V

  - Equipped with high-quality Samsung® LEDs

  - Nominal voltage : 12.00 V

  - Wattage/m : 9.60 W

  - Max. strip length (visual) : 6.20 m

  - Height (inch) : 1/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Area of application : Caravans, behind furniture and objects, Ceiling light direct/indirect, Boats

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Section length : 25.00 mm

  - Contact surface length : 4.00 mm

  - Life time : L80/B10: >70,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Aluminum profile is recommended from 9.6 W/ m.

  - Supplied with:

  - 1 roll


  Additional Information …

  With constant current strip lights, the maximum strip length (visual) describes a strip section within which the drop in luminous flux is not visually perceptible, not even in comparison to a strip section with a new power supply that follows immediately.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.
