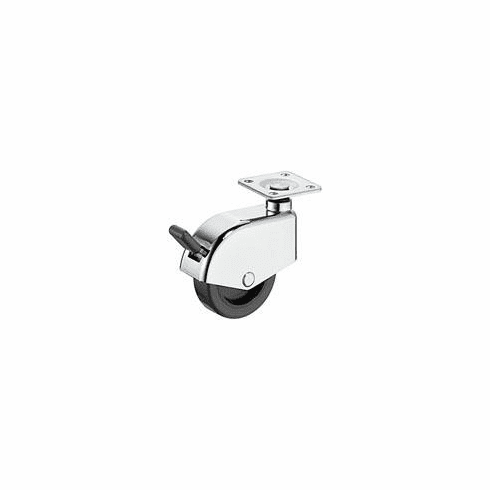

Hafele 660.19.261 Caster, Plate Mount, Load-Bearing Capacity 110 lbs. with screw-on plate, with brake

Product Information

• Description

  Manufacturer: Hafele
  Item: 660.19.261

  Product Title: Caster, M10 Stem, Load-Bearing Capacity 110 lbs, Wheel Ø50 mm (2"), with screw-on plate, with brake

  Category: Caster, M10 Stem, Load-Bearing Capacity 110 lbs, Wheel Ø50 mm (2"), Screw-on plate or M10 threaded bolt

  Item Details …

  - With mounting plate

  - Thread type : Soft

  - Threaded pin size :

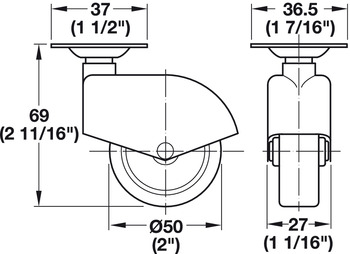

  - Length x width mm : 36.5 x 36.5 mm

  - Wheel Ø : 50.00 mm

  - Roller width : 29.00 mm

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs/castor

  - Color/finish : Wheel: Black, Housing: Chrome plated, Housing: Chrome platedWheel: Dark anthracite

  - Material : Housing: Zinc alloywheel: Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.5



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.5-6.5.pdf

  Hafele 660.19.261, 660-19-261, 66019261, 660.19


  Specifications/Hafele Catalog - Page# FC6.14: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Chipboard screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized
  • Glide, for Press-Fitting into Square Tubes
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Zip-R Screw, Pan Head, #2 Square Drive
  • Spax® Screw, Pan Head Screw with Uni-drive, Zinc-Plated
