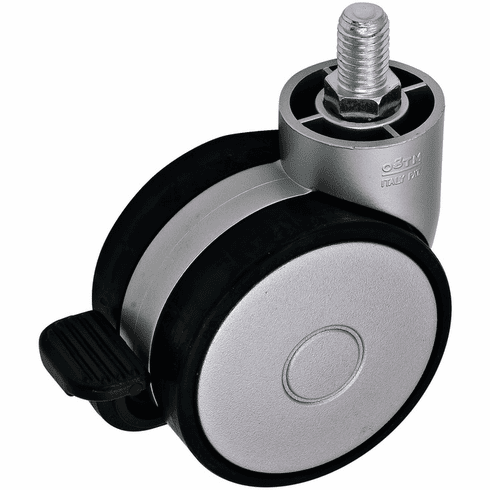

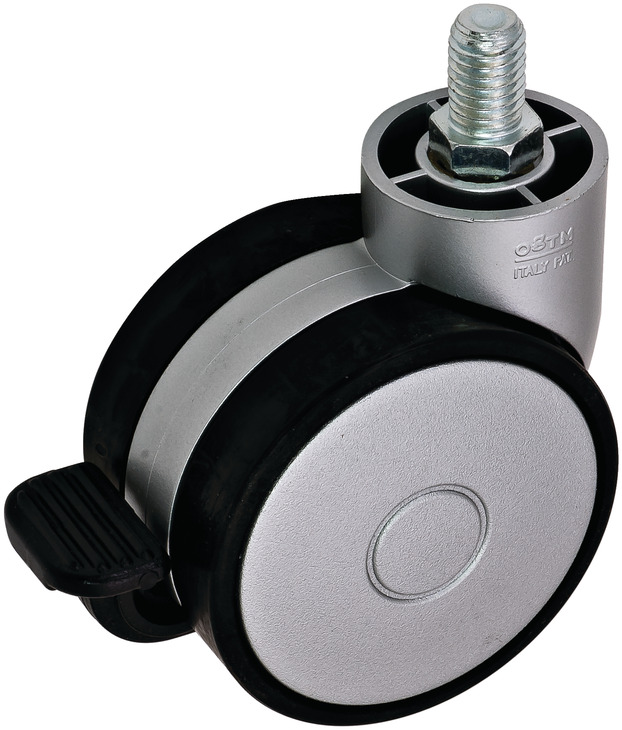

Hafele 660.31.991 Caster, M10 Stem, Load-Bearing Capacity 110 lbs., Silver With brake

Product Information

• Description

  Manufacturer: Hafele
  Item: 660.31.991

  Product Title: Caster, M10 Stem, Load-Bearing Capacity 110 lbs., Silver, With brake

  Category: Caster, M10 Stem, Load-Bearing Capacity 110 lbs., Silver,

  Item Details …

  - Thread type : Hard

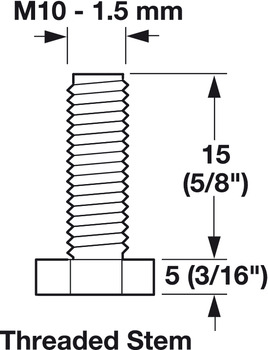

  - Installation : With M10 threaded stem

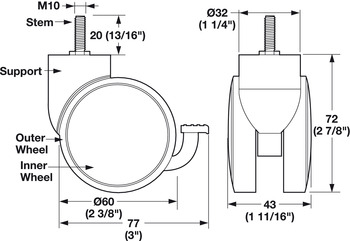

  - Wheel Ø : 60.00 mm

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : Per castor: 110 lbs

  - Color/finish : Black/Silver RAL 9006

  - Area of application : Designed for furniture, rolling pedestals, filing cabinets, tables, etc.

  - Material : Outer wheel: NylonStem: SteelInner wheel & support: ABS Plastic

  - Installation reference : Suitable for metal tubular legs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.6



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.6-6.6.pdf

  Hafele 660.31.991, 660-31-991, 66031991, 660.31
