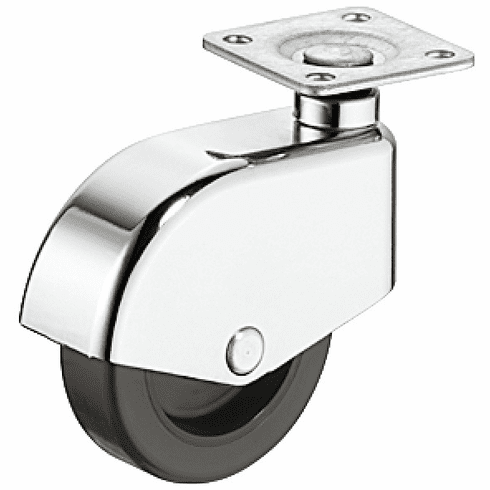

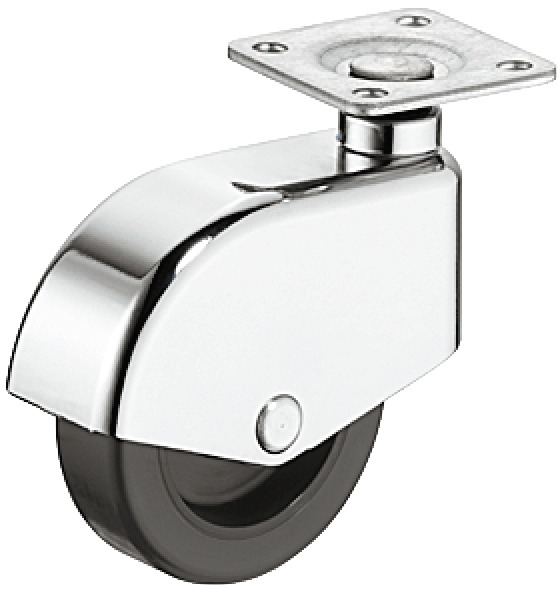

Hafele 660.18.264 Caster, Load bearing capacity 50 kg, free running with screw-on plate, without brake

Product Information

• Description

  Manufacturer: Hafele
  Item: 660.18.264

  Product Title: Caster, M10 Stem, Load-Bearing Capacity 110 lbs, Wheel Ø50 mm (2"), with screw-on plate, without brake

  Category: Caster, M10 Stem, Load-Bearing Capacity 110 lbs, Wheel Ø50 mm (2"), Screw-on plate or M10 threaded bolt

  Item Details …

  - With mounting plate

  - Thread type : Soft

  - Threaded pin size :

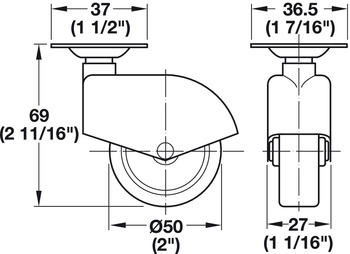

  - Length x width mm : 36.5 x 36.5 mm

  - Wheel Ø : 50.00 mm

  - Roller width : 29.00 mm

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs/castor

  - Color/finish : Wheel: Black, Housing: Chrome plated, Housing: Chrome platedWheel: Dark anthracite

  - Material : Housing: Zinc alloywheel: Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.5



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.5-6.5.pdf

  Hafele 660.18.264, 660-18-264, 66018264, 660.18


  Specifications/Hafele Catalog - Page# FC6.14: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs
