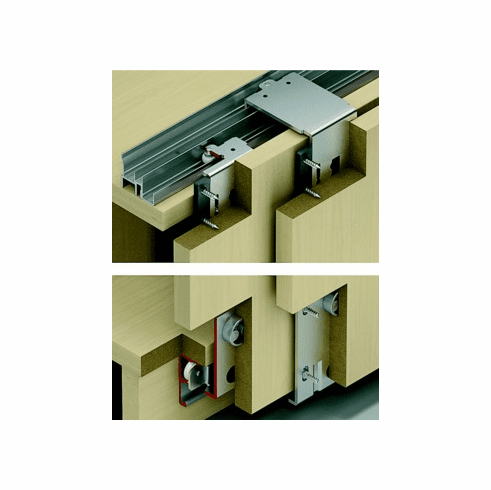

Hafele 405.91.232 Sliding Door Hardware, EKU Combino 35 H Foreslide, set For bottom running wood doors, for door heights up to 7' 2 5/8", For 3 Doors; 77 lbs weight capacity
Product Information
Description

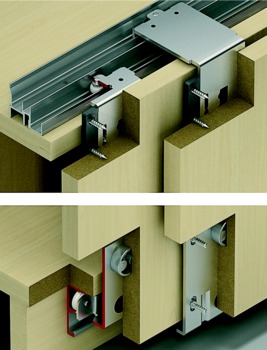

Hafele 405.91.232 Sliding Door Hardware, EKU Combino 35 H Foreslide, set
For bottom running wood doors, for door heights up to 7' 2 5/8", For 3 Doors; 77 lbs weight capacity
Additional items required to complete installation:
Double Upper Guide Track, Perforated
Double Lower Running Track, EKU Combino 20 and 35 H ForeslideDoor weight : (77 lbs) 35 kg Door height : max. (7' 2 5/8") 2200 mm Door width : max. (47 1/4") 1200 mm Door thickness : (3/4") 19 mm Door overlay : Recommended door overlay: 20 mm (13/16) Supplied with : 6 Running gears
6 guides
8 door stoppers (7 with clip-in door stopper, 1 stoppers)
2 door follower
1 set of mounting material
Optional items:
Cover Profile, EKU Combino 20 and 35 H Foreslide
Center Door Stopper, Steel spring part, plastic retainerSpecifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_7.40-7.41.pdfHafele 405.91.232, 405-91-232, 40591232, 405.91 Specifications/Hafele Catalog - Page# FC7.61:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
