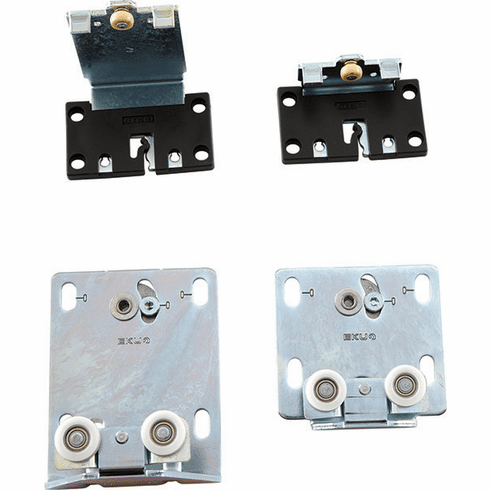

Hafele 405.91.224 Sliding Door Hardware, EKU Combino 35 H Foreslide, set For bottom running wood doors, for door heights up to 7' 2 5/8", For 2 Doors; 77 lbs weight capacity

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.91.224

  Product Title: Sliding Door Hardware, Hawa Combino 35 VF, set, For bottom running wood doors, for door heights up to 7' 2 5/8", For 2 Doors; 77 lbs weight capacity

  Category: Sliding Door Hardware, HAWA Combino 20/35 VF, set, For bottom running wood doors, for door heights up to 7' 2 5/8"

  Item Details …

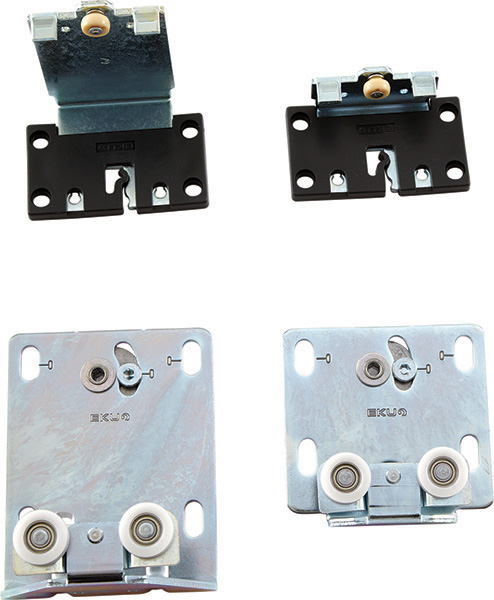

  - Set Components Include:

  - Lower running gears for inner door

  - Lower running gears for outer door

  - Upper running gear for inner door

  - Upper running gear for outer door

  - Mounting bracket

  - Track stopper with retainer

  - Track stopper

  - Clip retainer

  - Buffer (3 different types)

  - Mounting screws

  - Soft closing mechanism : with clip-in door stopper

  - For door thickness : 19 mm

  - For door width : ?1,200 mm

  - Cabinet version : with bottom running door wings

  - Set : Set without tracks

  - Area of application : For 2 doors

  - For door height : ?2,200 mm

  - Door stopper : Top and bottom clip-in door stopper or soft and self closing mechanism

  - Material/finish : Running gear: SteelGuide: SteelRollers: Plastic

  - Running position : Bottom

  - Running gear guided by : Ball bearing

  - Adjustment facility : Height adjustment: -2?–?4 mm, Height +4/-2 mm on running gear using eccentric screw

  - Door adjustment via : eccentric screw

  - Installation : Running gear and guide for screw fixing, Tool-free installation and de-installation of door wings

  - Running position : Bottom

  - Type of opening : linear

  - Number of doors per system max. : 2 to 3

  - Supplied with:

  - 4 running gears

  - 4 guides

  - 8 door stoppers (6 with clip-in door stopper/2 stoppers)

  - 1 door follower

  - 1 mounting material

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.41



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.40-7.41.pdf

  Hafele 405.91.224, 405-91-224, 40591224, 405.91


  Specifications/Hafele Catalog - Page# FC7.61: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Double Upper Guide Track, Pre-drilled (choose one):


  • for Hawa Combino/Clipo IF/MF/VF, 2.5 m for Hawa Combino/Clipo IF/MF/VF, 3.5 m

    405.52.026 405.52.036

    Click to order Click to order



  Double Lower Running Track, HAWA Combino 20/35 H VF (choose one):


  • for Hawa Combino VF, 2.5 m for Hawa Combino VF, 3.5 m

    406.31.902 406.31.903

    Click to order Click to order



  Optional Accessories:



  • Cover Profile, For Hawa Combino 20/35 H VF Set
  • Center Door Stopper, Steel spring part, plastic retainer
  • Soft and self closing mechanism, For Hawa Combino 20/35 VF/MF/IF
