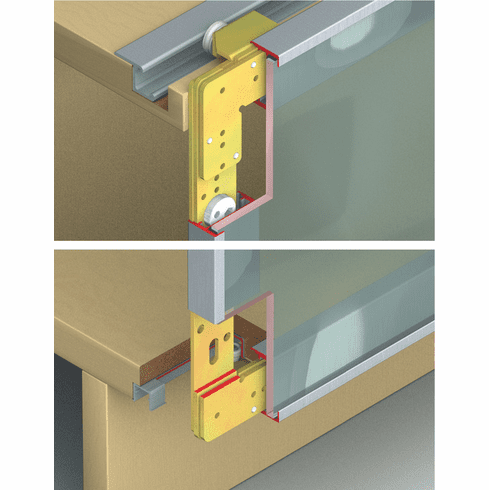

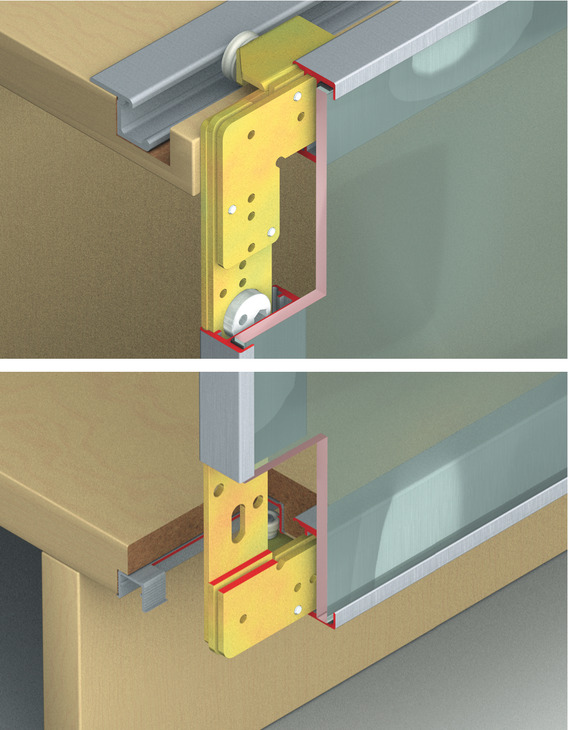

Hafele 405.55.111 Sliding Door Hardware, EKU Regal A 25 GR, 40/20 Forslide, Set For one aluminum frame sliding door, for door weights up to 55 lbs for door heights up to 86 5/8", For 1 door

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.55.111

  Product Title: Sliding Door Hardware, Hawa Regal A 25 GR VF, set, For one aluminum frame sliding door, for door weights up to 55 lbs for door heights up to 86 5/8", For 1 door

  Category: Sliding Door Hardware, Hawa Regal A 25 GR VF, set, For one aluminum frame sliding door, for door weights up to 55 lbs for door heights up to 86 5/8", For 1 door

  Item Details �

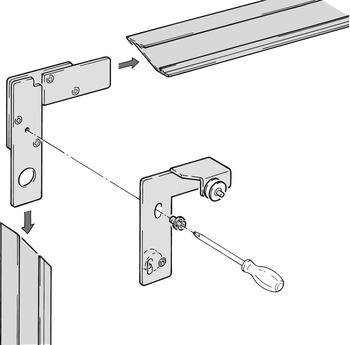

  - Simple construction of aluminum frame door - miter profile (no further shaping required), put together with angle connectors, screw-mount and install fittings

  - Rails not visible

  - Aluminum frame profile

  - Number of doors : 1.00

  - For door width : ?1,200 mm

  - For door weight : ?25 kg

  - Running position : Top

  - Number of rollers : 1.00

  - Height adjustment : �2 mm

  - Running gear guided by : Ball bearing

  - Door width max. : 47 1/4"

  - Load bearing capacity : 55 lbs.

  - Door height min. : 86 5/8"

  - For min. glass thickness (inches) : 5/32"

  - Cabinet version : shelves

  - Set : Set without tracks

  - Area of application : For door weights up to 25 kg, for sliding doors with aluminum frame 40/22

  - For door height : ?2,200 mm

  - Door stopper : Top stopper, with retainer for sliding into single top running track

  - Material/finish : Rollers: Plastic

  - Adjustment facility : Height adjustment: �2 mm, Eccentric height adjustment of �1.5 mm (� 1/16�) on running gear

  - Door adjustment via : eccentric screw

  - Installation : Running gear and guide for screw fixing

  - Order reference

  - Please order running tracks, guide rail, aluminum profile and glass gasket separately.

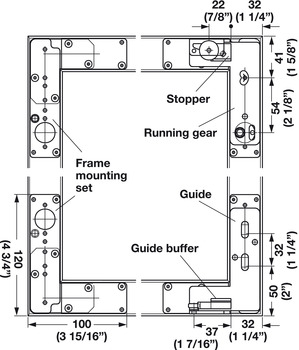

  - Supplied with:

  - 1 Running gear

  - 1 guide

  - 1 frame mounting set

  - 2 stoppers (left & right)

  - 2 guide buffers

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Hawa Regal A 25 GR VF Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page�7.89



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.80-7.81.pdf

  Hafele 405.55.111, 405-55-111, 40555111, 405.55




  Item details

  For 1 door



  Load bearing capacity



  (55 lbs.) 25 kg

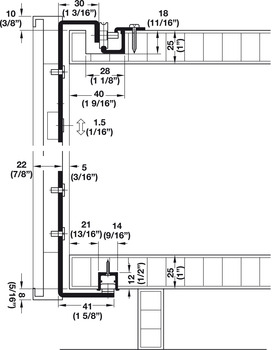

  Door height



  (86 5/8") 2200 mm



  Door width



  (47 1/4") 1200 mm



  For glass door thickness



  (5/32") 4 mm



  Adjustment



  Eccentric height adjustment of

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, For Hawa Regal VF (choose one):


  • for Hawa Regal VF, 2.5 m for Hawa Regal VF, Length: 11' 5 13/16"

    405.56.002 405.56.003

    Click to order Click to order



  Single Guide Track, Bright Aluminum for Screw Mounting (choose one):


  • for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 2.5 m for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 3.5 m for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 6 m

    405.30.026 405.30.036 405.30.061

    Click to order Click to order Click to order



  Optional Accessories:



  • Glass Gasket, Hawa Clipo 26 GR & Regal A 25 GR 40/22 Forslide
  • Aluminum frame profile, For 40/22 aluminum frame, Hawa Frontal
