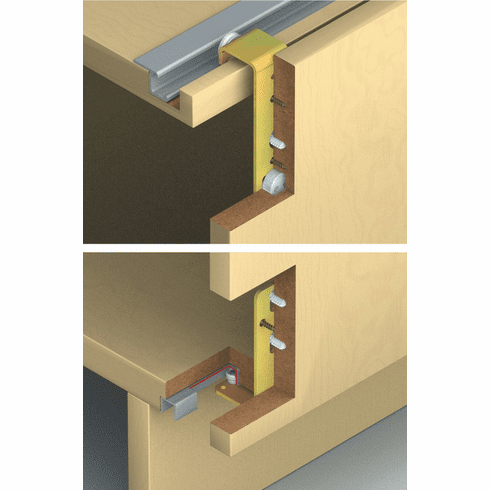

Hafele 405.55.011 Sliding Door Hardware, EKU Regal A 25 H Forslide, Set For 1 wood door, for door weights up to 55 lbs, for door heights up to 94 1/2"

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.55.011

  Product Title: Sliding Door Hardware, Hawa Regal A25 H VF, set, For 1 wood door, for door weights up to 55 lbs, for door heights up to 94 1/2", Vorfront

  Category: Sliding Door Hardware, Hawa Regal A25 H VF, set, For 1 wood door, for door weights up to 55 lbs, for door heights up to 94 1/2", Vorfront

  Item Details …

  - Set Components Include:

  - Running gear, single roller

  - Stopper, left

  - Stopper, right

  - Guide

  - Guide buffer

  - Rails not visible

  - Easy door mounting

  - Number of doors : 1.00

  - Soft closing mechanism : with clip-in door stopper

  - For door thickness : 19?–?25 mm

  - For door width : ?1,200 mm

  - For door weight : ?25 kg

  - Running position : Top

  - Number of rollers : 1.00

  - Height adjustment : ±2 mm

  - Running gear guided by : Ball bearing

  - For door material : wood

  - For door thickness max. : 1"

  - Door width max. : Max. 47 1/4"

  - For door thickness min. : 3/4"

  - Door weight max. : 55 lbs.

  - Height adjustment : +/- 1/16" on running gear

  - Height adjustable :

  - Cabinet version : shelves

  - Set : Set without tracks

  - Area of application : For 1 door

  - For door height : ?2,400 mm

  - Door stopper : Top and bottom clip-in door stopper, for sliding into running track

  - Material/finish : Running gear: SteelGuide: SteelRollers: Plastic

  - Adjustment facility : Height adjustment: ±2 mm, Height ±2 mm on running gear using eccentric screw

  - Door adjustment via : eccentric screw

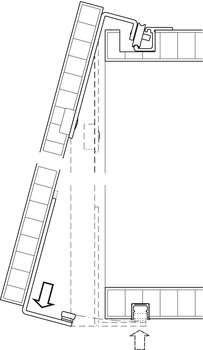

  - Installation : Running gear and guide for screw fixing, Tool-free installation and de-installation of door wings

  - Type of opening : linear

  - Number of doors per system max. : 1

  - Order reference

  - Please order running and guide track separately.

  - Supplied with:

  - 2 Running gears

  - 2 door stoppers

  - 4 guides

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  REGAL A 25 H Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.49



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.48-7.49.pdf

  Hafele 405.55.011, 405-55-011, 40555011, 405.55


  Specifications/Hafele Catalog - Page# FC7.49: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, For Hawa Regal VF (choose one):


  • for Hawa Regal VF, 2.5 m for Hawa Regal VF, Length: 11' 5 13/16"

    405.56.002 405.56.003

    Click to order Click to order



  Single Guide Track, Bright Aluminum for Screw Mounting (choose one):


  • for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 2.5 m for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 3.5 m for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 6 m

    405.30.026 405.30.036 405.30.061

    Click to order Click to order Click to order



  Optional Accessories:



  • Intermediate Door Stop, For Hawa Regal VF
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
