Hafele 405.55.214 Sliding Door Hardware, EKU Regal B 25 H Forslide, set Vorfront, for 1 door, with installation instructions

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.55.214

  Product Title: Sliding Door Hardware, Hawa Regal B 25 H VF, set, For shelves, for 1 individually positioned wooden door, for door weights up to 25 kg, for door heights up to 2,000 mm, With clip-in door stopper

  Category: Sliding Door Hardware, Hawa Regal B 25 H VF, set, For shelves, for 1 individually positioned wooden door, for door weights up to 25 kg, for door heights up to 2,000 mm, With clip-in door stopper

  Item Details �

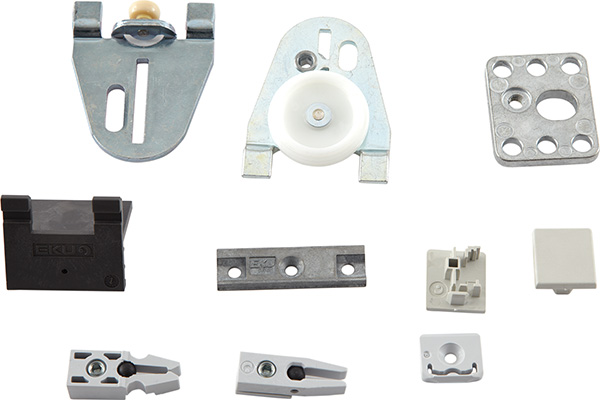

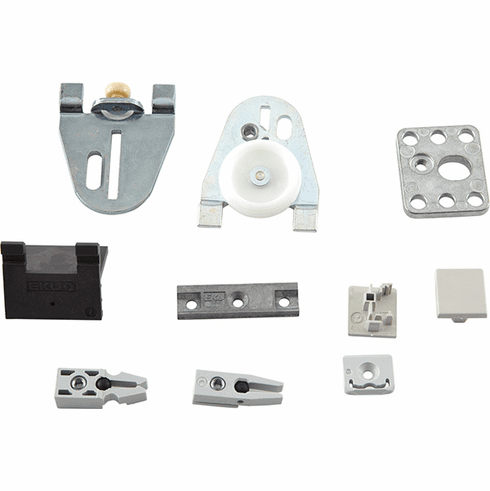

  - Set Components Include:

  - Running gear, single roller

  - Guide

  - Connecting plate

  - Stop, for guide rail

  - Stop, for running rail

  - Mounting clip

  - Fixing clip, with screw

  - End cap, for running and guide rail

  - Mounting jig, for clips

  - Door of any size can be placed in any position

  - Elegant design through clip-on rail method

  - Top or bottom running

  - Number of doors : 1.00

  - Soft closing mechanism : with clip-in door stopper

  - For door thickness : 16?�?50 mm

  - For door width : ?1,200 mm

  - For door weight : ?25 kg

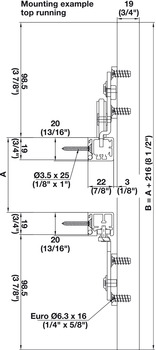

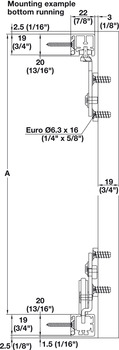

  - Running position : Top, Bottom

  - Number of rollers : 1.00

  - Height adjustment : �2 mm

  - Running gear guided by : Friction bearing

  - For door material : wood

  - Height adjustable :

  - Cabinet version : with 1 freely placeable door leaf, shelves

  - Set : Set without tracks

  - Area of application : For 1 individually positioned door

  - For door height : ?2,000 mm

  - Door stopper : Top and bottom clip-in door stopper or soft and self closing mechanism, for sliding into running track

  - Material/finish : Running gear: SteelGuide: SteelRollers: Plastic

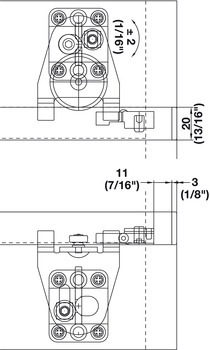

  - Adjustment facility : Height adjustment: �2 mm, Height �2 mm on running gear using eccentric screw

  - Door adjustment via : eccentric screw

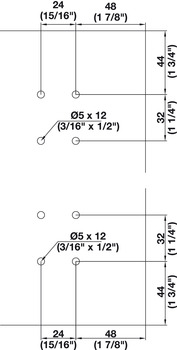

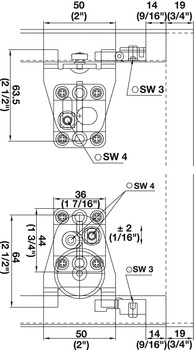

  - Installation : Connecting plate, running gear and guide for screw fixing

  - Type of opening : linear

  - Number of doors per system max. : 1

  - Order reference

  - Please order running and guide track separately.

  - Supplied with:

  - 2 running gears

  - 2 guides

  - 4 connection plates

  - 4 door stoppers (2 with clip-in door stopper, 2 stoppers)

  - 22 mounting clips

  - 4 fixing clips

  - 4 end caps

  - 1 mounting jig

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  REGAL B 25 H Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page�7.51



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.50-7.51.pdf

  Hafele 405.55.214, 405-55-214, 40555214, 405.55


  Specifications/Hafele Catalog - Page# FC7.51: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Running Track, For clip fixing, 22 x 20 mm (W x H) (choose one):


  • For Hawa Regal VF, Length: 2.5 m; 8' 2 7/16"

    405.69.912

    Click to order



  Single Guide Track, For clip fixing, 20 x 20 mm (W x H) (choose one):


  • for Hawa Regal VF, Length: 2.5 m; 8' 2 7/16"

    405.61.912

    Click to order



  Optional Accessories:



  • Vertical Profile, For clip fixing to the side, 19 x 20 mm (W x H)
  • Spacer, Hawa Regal B 25 H Forslide
  • Fixing Clip, Hawa Regal B 25 H Forslide
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
