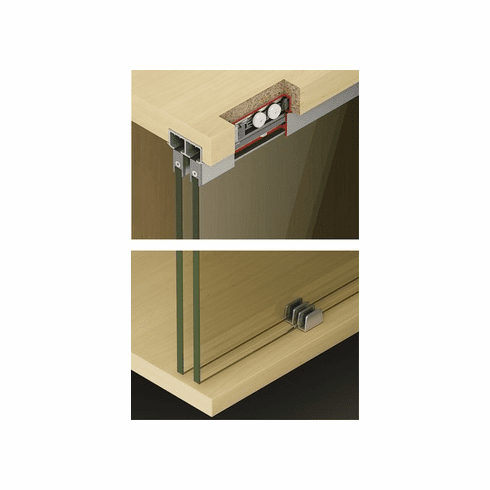

Hafele 405.02.410 Sliding Door Hardware, EKU Clipo 36 GPK/GPPK Inslide Set For 1 glass door; max door weight: 79 lbs (36 kg), Infront

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.02.410

  Product Title: Sliding Door Hardware, Hawa Clipo 36 GPK IF, set, For 1 glass door; max door weight: 79 lbs (36 kg), GPK

  Category: Sliding Door Hardware, HAWA Clipo 36 GPK/GPPK IF, set, For 1 glass door; max door weight: 79 lbs (36 kg)

  Item Details …

  - Running gear includes four plastic rollers

  - Optional soft close mechanism can be inconspicuously integrated into the track so its is not visible and is protected from damage

  - No guide rails in the bottom of the cabinet

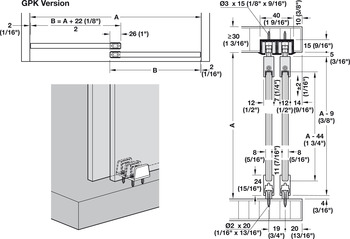

  - GPK Version: Glass fixing profile is on the top of the door, floor guide located at the bottom

  - GPPK Version: Glass fixing profile is on the top and bottom of the door, floor guide is concealed within the profile

  - Number of doors : 1.00

  - Soft closing mechanism : with clip-in door stopper

  - For glass thickness : 6–8 mm

  - For door width : ?1,000 mm

  - For door weight : ?36 kg

  - Cabinet version : with sliding doors without glass drilling

  - Set : Set without tracks

  - Area of application : For 1 door

  - For door height : ?2,000 mm

  - Door stopper : Top clip-in door stopper, for sliding into single or double top running track

  - Material/finish : Running gear: Zinc alloySuspension: Zinc alloyGuide: Zinc alloyGuide: PlasticRollers: PlasticAxis: Steel

  - Running position : Top

  - Number of rollers : 4.00

  - Running gear guided by : Friction bearing

  - Adjustment facility : Height adjustment: ±2 mm

  - Door processing : Without glass preparation

  - Running position : Top

  - Type of opening : linear

  - Number of doors per system max. : 1

  - Order reference

  - Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately.

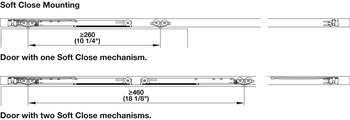

  - Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.

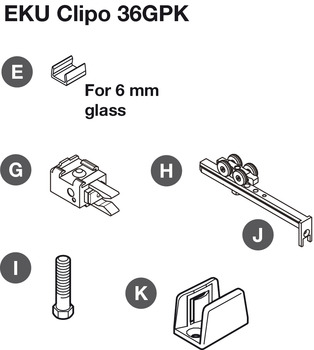

  - Supplied with:

  - 2 Running gears

  - 2 track stoppers

  - 2 glass centering pieces

  - 1 guide

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Clipo 36 GPK GPKK Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.83



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.74-7.75.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Upper Track, Pre-Drilled, for Screw Fixing (choose one):


  • for Hawa Clipo, 2.5 m for Hawa Clipo, 3.5 m

    405.00.622 405.00.623

    Click to order Click to order



  Single Running Track, Pre-Drilled, for Screw Fixing (choose one):


  • for Hawa Clipo, Aluminum, silver colored anodized, length 2.5 m

    405.00.632

    Click to order



  Double Running Track, Perforated (choose one):


  • for Hawa Clipo, 2.5 m for Hawa Clipo, 3.5 m

    405.02.622 405.02.623

    Click to order Click to order



  Glass Fixing Profile, Hawa Clipo 36 GPK/GPPK Inslide (choose one):


  • for Hawa Clipo, 2.5 m for Hawa Clipo, 3.5 m

    405.03.202 405.03.203

    Click to order Click to order



  Optional Accessories:



  • Soft Close Mechanism, Optional
  • Service Port for Upper Track, Plastic
