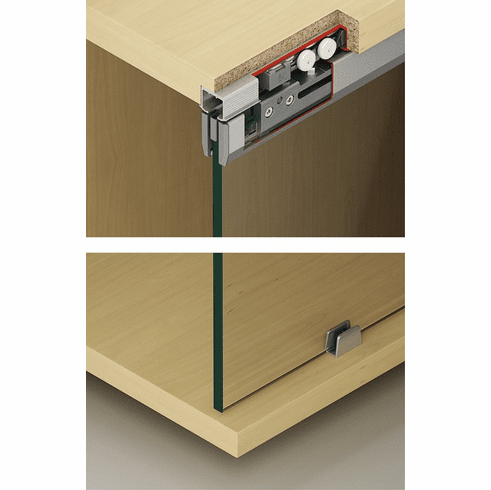

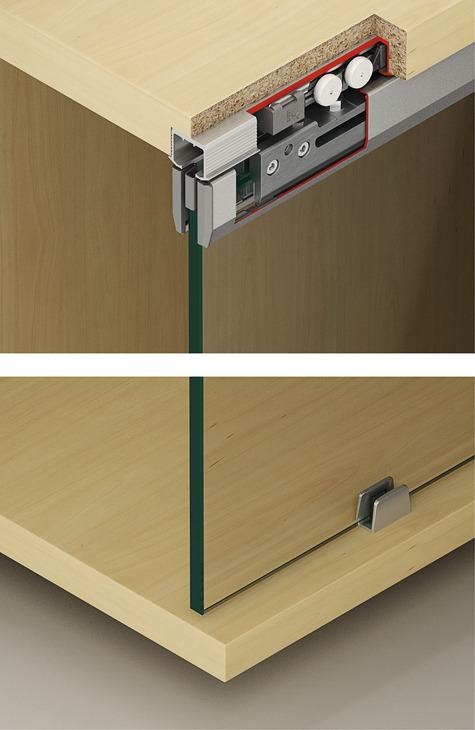

Hafele 405.02.409 Sliding Door Hardware, EKU Clipo 36 G Inslide Set & Regal A 25 GR 40/22 Foreslide For 1 glass door, max. door weight: 79 lbs. (36 kg)

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.02.409

  Product Title: Sliding Door Hardware, Hawa Clipo 36 G IF, set, For 1 glass door, max. door weight: 79 lbs. (36 kg)

  Category: Sliding Door Hardware, Hawa Clipo 36 G IF, set, For 1 glass door, max. door weight: 79 lbs. (36 kg)

  Item Details …

  - Running gear includes four plastic rollers

  - Optional soft close mechanism can be inconspicuously integrated into the track so it is not visible and is protected from damage

  - Number of doors : 1.00

  - Soft closing mechanism : with clip-in door stopper

  - For glass thickness : 6–8 mm

  - For door width : ?1,000 mm

  - For door weight : ?36 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Height adjustment : ±2 mm

  - Running gear guided by : Friction bearing

  - For door material : glass

  - For door thickness max. : 5/16"

  - For door height (inches) : Max: 6' 6 3/4"

  - For door width (inches) : Max: 39 3/8"

  - For door thickness min. : 1/4"

  - Door weight max. : 79 lbs.

  - Height adjustment : +/- 1/16"

  - Height adjustable :

  - For min. glass thickness (inches) : 1/4"

  - For max. glass thickness (inches) : 5/16"

  - Cabinet version : with sliding doors without glass drilling

  - Set : Set without tracks

  - Area of application : For 1 door

  - For door height : ?2,000 mm

  - Door stopper : Top clip-in door stopper, for sliding into single top running track

  - Material/finish : Running gear: PlasticGuide: PlasticCover cap: PlasticRollers: PlasticAxis: Steel

  - Adjustment facility : Height adjustment: ±2 mm, Height ±2 mm

  - Door processing : Without glass preparation

  - Number of doors per system max. : 1

  - Order reference

  - Please order running and guide tracks separately.

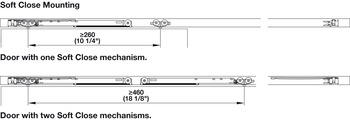

  - Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.

  - Supplied with:

  - 2 Running gears

  - 1 guide/spacer

  - 2 clamp shoes for glass

  - 2 door stoppers with clip-in door stopper

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Clipo 36 G IF Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.85



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.76-7.77.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Upper Track, Pre-Drilled, for Screw Fixing (choose one):


  • for Hawa Clipo, 2.5 m for Hawa Clipo, 3.5 m

    405.00.622 405.00.623

    Click to order Click to order



  Single Running Track, Pre-Drilled, for Screw Fixing (choose one):


  • for Hawa Clipo, Aluminum, silver colored anodized, length 2.5 m

    405.00.632

    Click to order



  Optional Accessories:



  • Clip-On Fascia, For HAWA Clipo 36 G IF
  • End Cap Set, for Hawa Clipo 36 F IF
  • Soft Close Mechanism, Optional
  • Service Port for Upper Track, Plastic
