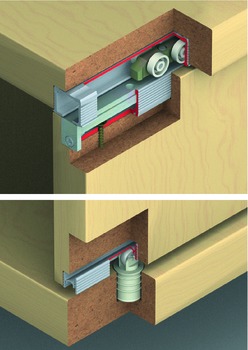

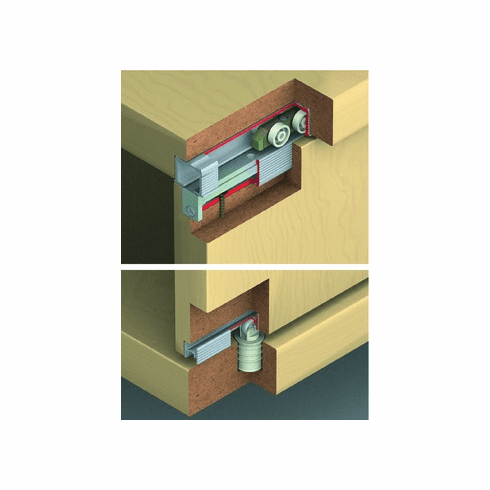

Hafele 405.02.408 Sliding Door Hardware, EKU Clipo 36 HM Inslide, Set Optional Soft Close Set, For 1 wood door

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.02.408

  Product Title: Sliding Door Hardware, Hawa Clipo 36 HM IF, Infront, set, Optional Soft Close Set, For 1 wood door

  Category: Sliding Door Hardware, Hawa Clipo 36 HM IF, Infront, set, Optional Soft Close Set, For 1 wood door

  Item Details …

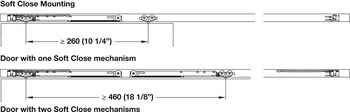

  - Optional soft close mechanism can be inconspicuously integrated into the track so it is not visible and is protected from damage

  - Rattle-free floor guide

  - No guide rails in the floor

  - Tool-less slide-on hardware allows for quick and easy door mounting

  - Number of doors : 1.00

  - For door thickness : 19?–?25 mm

  - For door width : ?1,000 mm

  - For door weight : ?36 kg

  - Number of rollers : 4.00

  - Height adjustment : ±2 mm

  - For door material : wood

  - For door thickness max. : 1"

  - For door height (inches) : Max: 7' 10 1/2"

  - For door width (inches) : Max: 39 3/8"

  - For door thickness min. : 3/4"

  - Door weight max. : 79 lbs

  - Height adjustable :

  - Weight (pound) : Max. door = 79 lbs.

  - Set : Set without tracks

  - For door height : ?2,400 mm

  - Material/finish : Rollers: Plastic

  - Adjustment facility : Height adjustment: ±2 mm, Height adjustment +/- 2 mm (1/16")

  - Type of opening : linear

  - Number of doors per system max. : 1

  - Supplied with:

  - 2 running gears with housings

  - 2 door stoppers

  - 1 floor guide

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Clipo 26 36 HM IF Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.35



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Bottom Guide Rail, for Hawa Combino/Clipo IF (choose one):


  • for Hawa Combino/Clipo IF, 2.5 m

    405.04.351

    Click to order



  Single Upper Track, Pre-Drilled, for Screw Fixing (choose one):


  • for Hawa Clipo, 2.5 m for Hawa Clipo, 3.5 m

    405.00.622 405.00.623

    Click to order Click to order



  Optional Accessories:



  • Service Port for Upper Track, Plastic
  • Soft Close Mechanism, Optional
  • Soft Stop, Hawa Clipo 36 HM, Inslide
