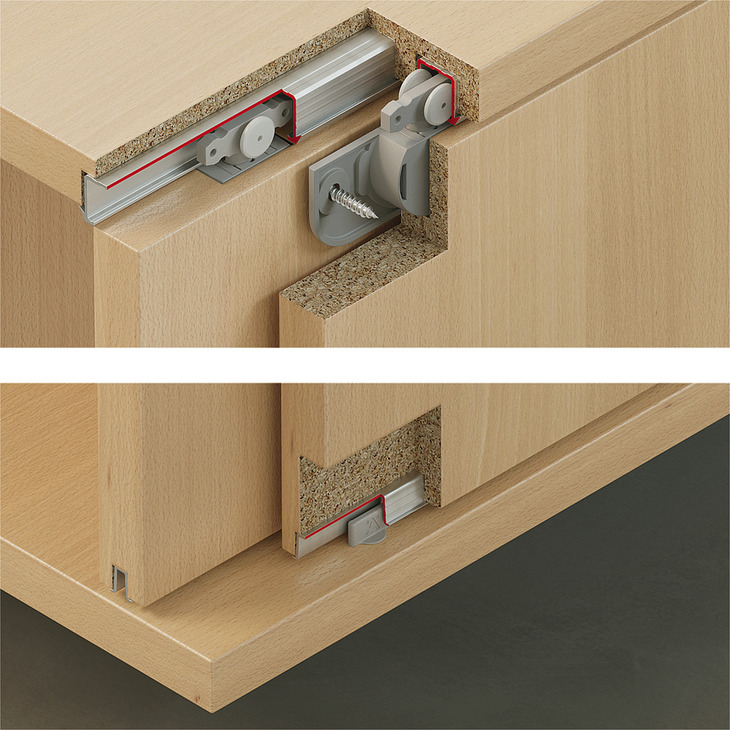

Hafele 402.33.015 Sliding Door Hardware, Slido Classic 12 IF C, set For small wooden sliding doors, for door weights up to 12 kg, With dual soft closing on each door

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.33.015

  Product Title: Sliding Door Hardware, Slido F-Line21 12C, set, For small wooden sliding doors, for door weights up to 12 kg, With dual soft closing on each door

  Category: Sliding Door Hardware, Slido F-Line21 12C, set, For small wooden sliding doors, for door weights up to 12 kg

  Item Details …

  - Number of doors : 2.00

  - For door thickness : 16?–?19 mm

  - For door weight : 6?–?12 kg

  - Running position : Top

  - Number of rollers : 2.00

  - Height adjustment : ±1.5 mm

  - Running gear guided by : Friction bearing

  - For door material : wood

  - For door thickness max. : 3/4"

  - Door width max. : 3' 3 3/8"

  - For door thickness min. : 5/8"

  - Door weight max. : 26 lbs.

  - Height adjustable :

  - Length (inch) : 2' 1 19/32"

  - Cabinet version : with small door wings

  - Set : Set without tracks

  - Area of application : For door weights: (26 lbs.) 12 kg

  - Note on door weight : We recommend that you adhere to the minimum door weight.

  - Door stopper : Top clip-in door stopper or soft and self closing mechanism, for sliding into running track

  - Material/finish : Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel

  - Adjustment facility : Height adjustment: ±1.5 mm, ±1.5 mm on running gear using adjusting wheel

  - Door adjustment via : adjusting wheel

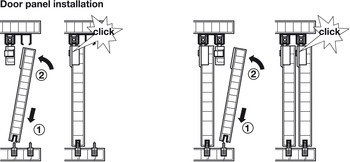

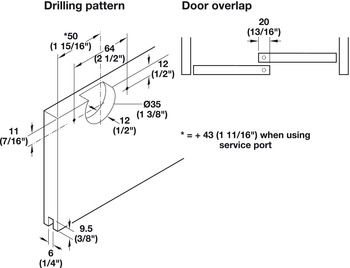

  - Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

  - Number of doors per system max. : 1 to 3

  - Order reference

  - Please order running and guide tracks separately.

  - Supplied with:

  - 4 housing

  - 2 screw mounted running gears

  - 2 clip mounted running gears

  - 4 door stoppers

  - 2 guides

  - 1 door stop

  - 1 mounting aid

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Slido F-Line21 12C Mounting Instructions

  LGA quality certificate for Slido F-Line21 12 C/D.pdf

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.17



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single running track, For Slido F-Line21 (choose one):


  • for Slido Classic IF/MF/VF, Slido Design IF, mill, 2.5 m length for Slido Classic IF/MF/VF, Slido Design IF, mill, 3.5 m length

    402.33.642 402.33.643

    Click to order Click to order



  Double Top Running Track, Top, for press fitting and glue fixing (choose one):


  • For Slido F-Line21, 8' 2 7/16"

    402.33.652

    Click to order



  Single Top Running Track, For Slido F-Line21 (choose one):


  • for Häfele Slido F-Line21, 8' 2 7/16" for Häfele Slido F-Line21, silver colored anodized, length: 3,500 mm, aluminum

    402.30.642 402.30.643

    Click to order Click to order



  Double Top Running Track, For Slido F-Line21 (choose one):


  • for Slido Classic VF, 8' 2 7/16"

    402.30.652

    Click to order



  Lower Guide Channel, Bottom, with harpoon-type flanges, for press fitting and glue fixing (choose one):


  • for Slido Classic IF/MF/VF, Slido Design IF, Length: 8' 2 7/16" for Slido Classic IF/MF/VF, Slido Design IF, Length: 11’ 5 13/16”

    402.30.802 402.30.803

    Click to order Click to order
