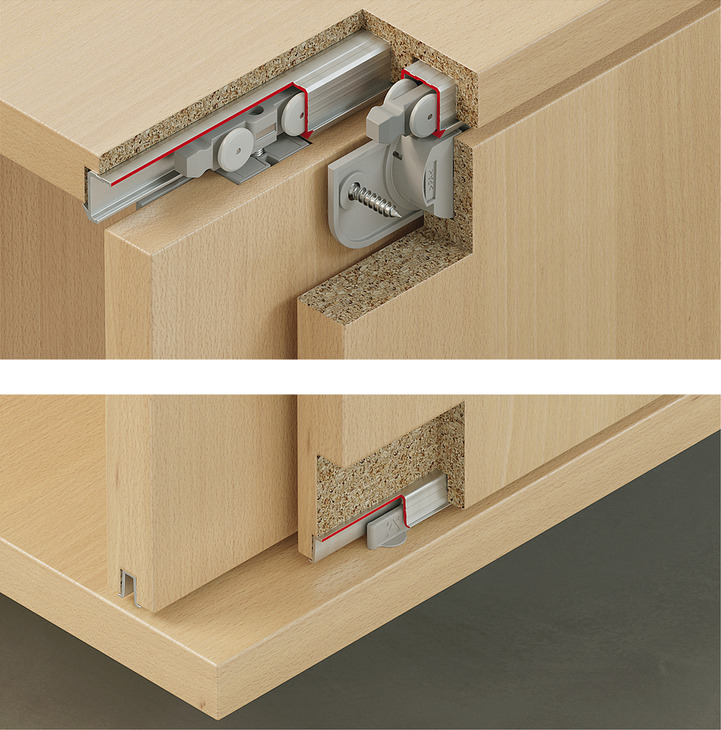

Hafele 402.33.018 Sliding Door Hardware, Slido Classic 20 IF C for small doors, for wooden sliding doors, for door weight up to 20 kg, for 2 doors, with track stopper

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.33.018

  Product Title: Sliding Door Hardware, Slido F-Line21 20C, set, for small doors, for wooden sliding doors, for door weight up to 20 kg, for 2 doors, with track stopper

  Category: Sliding Door Hardware, Slido F-Line21 20C, set, for small doors, for wooden sliding doors, for door weight up to 20 kg

  Item Details …

  - Ideal for small doors

  - Number of doors : 2.00

  - For door thickness : 16?–?19 mm

  - For door weight : 13?–?20 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Height adjustment : ±2 mm

  - Running gear guided by : Friction bearing

  - For door material : wood

  - For door thickness max. : 3/4"

  - Door width max. : Max: 4' 1 3/16"

  - For door thickness min. : 5/8"

  - Door weight max. : 44 lbs.

  - Height adjustable :

  - Length (inch) : 2' 1 19/32"

  - Cabinet version : with small door wings

  - Set : Set without tracks

  - Area of application : For 2 doors

  - Note on door weight : We recommend that you adhere to the minimum door weight.

  - For door height : ?1,400 mm

  - Door stopper : Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track

  - Material/finish : Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel

  - Adjustment facility : Height adjustment: ±2 mm, ±2 mm on running gear using adjusting wheel

  - Door adjustment via : adjusting wheel

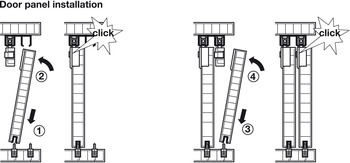

  - Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

  - Type of opening : linear

  - Number of doors per system max. : 1 to 3

  - Order reference

  - Please order running and guide tracks separately.

  - Supplied with:

  - 4 running gears

  - 4 door stoppers with clip-in door stopper

  - 1 door follower

  - 2 inspection supports

  - 2 guides

  - 1 mounting aid
