Slido F-Line21 12C Fitting Set, for 2 doors, with 2 soft close and 2 clip-in door stoppers: Hafele part# 402.33.014
Product Information
Description

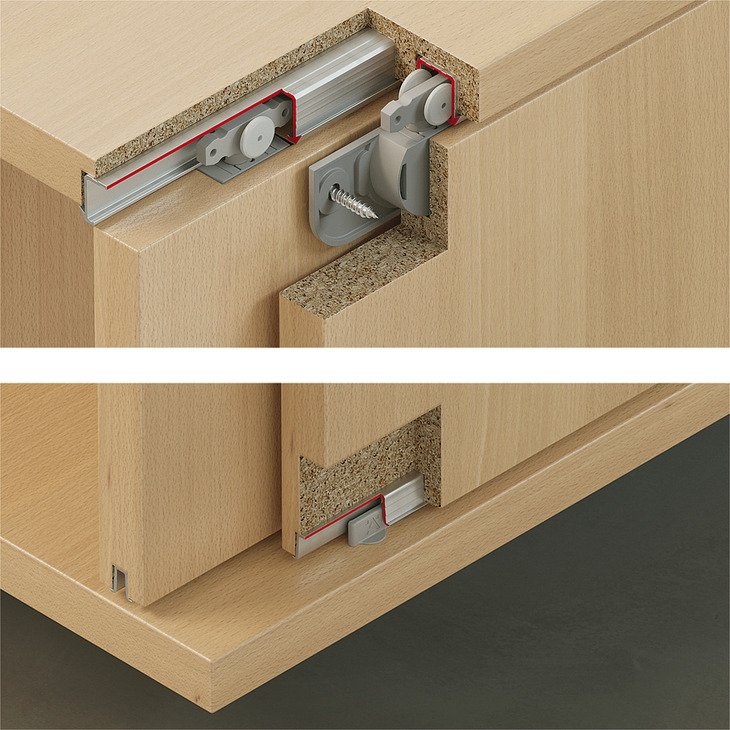

Hafele 402.33.014 Sliding Door Hardware, Slido Classic 12 IF C, set
For small wooden sliding doors, for door weights up to 12 kg, With single soft closing on each door
Additional items required to complete installation:

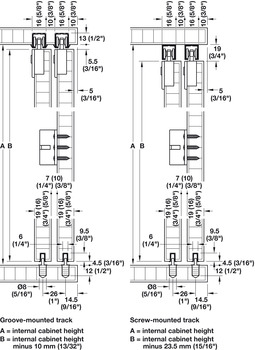

Single running track, Slido Classic 12 IF & VF C For press fitting and for glue fixing into groove 16 mm or for screw fixing
Double Top Running Track, Slido Classic 12 & 20 IF, VF C For press fitting and for glue fixing into groove 16 mm or for screw fixing
Single Top Running Track, Top, for screw fixing For screw fixing
Double Top Running Track, Slido Classic 12 IF & VF C For screw fixing

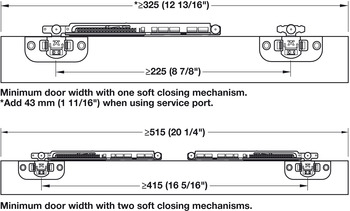

Lower Guide Channel, Slido Classic 12 IF & VF CFor 2 doors Version : With soft and self closing mechanism on one side, 12 kg Door width : ‰¥325 mm with soft closing mechanism on one side

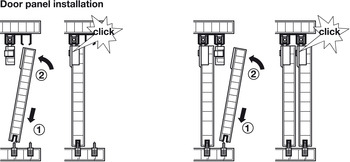

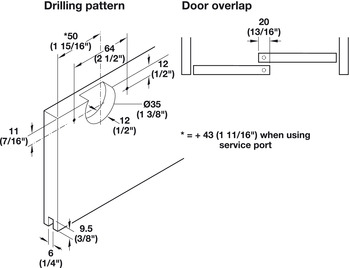

‰¥515 mm with soft closing mechanism on both sidesDoor thickness : (5/8" - 3/4") 16 - 19 mm Door stopper : Top clip-in door stopper or soft and self closing mechanism, for sliding into running track Material : Housing, running gear and guide: Plastic Running gear : Top running, 2 rollers Running gear guided by : Friction bearing mounted roller: Plastic, axle: Steel Adjustment : ±1.5 mm on running gear using adjusting wheel Installation : Housing for screw fixing, running gear without tools (quick fixing system), guide for press fitting into drill hole Order reference : Please order running and guide tracks separately. For cabinets with 3 doors, please order following sets: 1 set for 1 door and 1 set for 2 doors
