Hafele 400.70.900 Sliding Door Hardware, Hawa Aperto 40/F, Infront

Product Information

• Description

  Manufacturer: Hafele
  Item: 400.70.900

  Product Title: Sliding Door Hardware, Hawa Aperto 40/F, Infront, For up to 7 stackable door panels, for 1 parking area

  Category: Sliding Door Hardware, Hawa Aperto 40/F, Infront, For up to 7 stackable door panels, for 1 parking area

  Item Details …

  - Smooth quiet operation

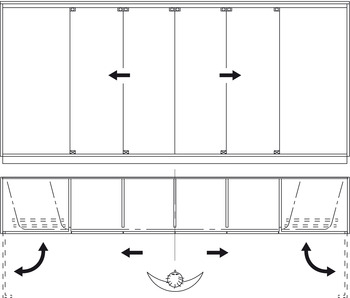

  - Up to 7 panels can be stored in a parking area on one side of the cabinet

  - Cabinet front is flush when closed

  - Use for left or right handed application

  - Custom and curved applications available. Contact our product specialist at 1-888-437-7477.

  - For door thickness : 19?–?25 mm

  - For door width : 400?–?900 mm

  - For door weight : ?40 kg

  - Number of rollers : 2.00

  - Height adjustment : ±2 mm

  - Running gear guided by : Friction bearing

  - For door material : wood

  - For door thickness max. : 1"

  - For door height (inches) : ? 102 3/8"

  - For cabinet width : 15 3/4" - 35 7/16"

  - For door width (inches) : ? 102 3/8"

  - For door thickness min. : 3/4"

  - Height adjustment : ± 5/64"

  - Height adjustable :

  - Cabinet version : with parking area, with stackable door panels per parking area

  - Set : Set with tracks

  - Area of application : for 1 parking area

  - For door height : ?2,600 mm

  - Material/finish : Mounting plate: Zinc alloyRunning gear: Zinc alloyRollers: Plastic

  - Adjustment facility : Height adjustment: ±2 mm, Height adjustment ±2 mm on running gear using screw

  - Door adjustment via : screw

  - Installation : Running gear and guide for screw fixing

  - Door processing : for screw fixing

  - Model series : Aperto

  - Type of opening : Parking

  - Number of doors per system max. : 7

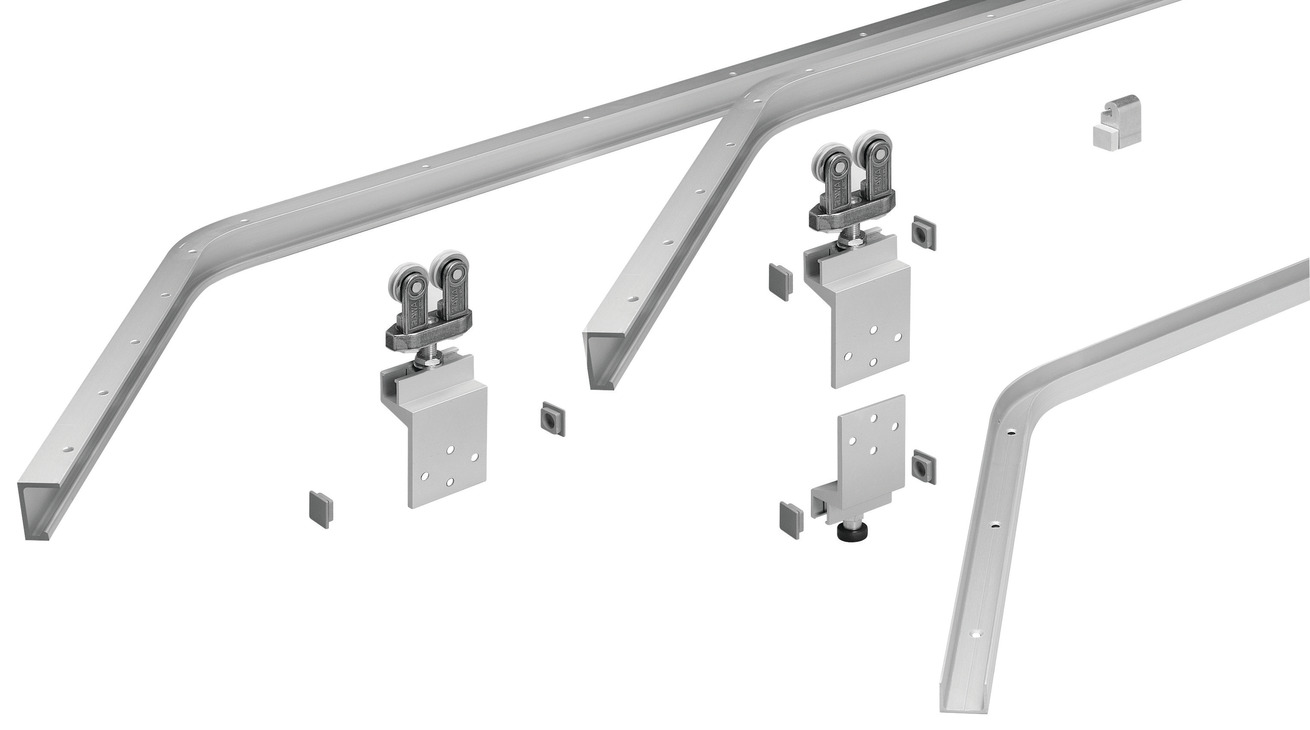

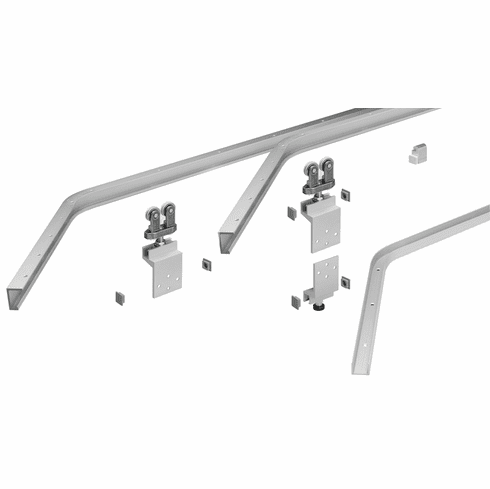

  - Supplied with:

  - 2 curved single top running tracks

  - 1 curved single bottom guide track

  - 8 single fixing plates

  - 1 double fixing plate

  - 6 connecting bolts

  - 2 door stopper sets (1 top/1 bottom)

  - 1 center door stopper

  - 1 adjustment wrench

  - 1 hex key
