Hafele 400.70.910 Sliding Door Hardware, Hawa Aperto 40/F, set For Cabinet Applications, Component Set

Product Information

• Description

  Manufacturer: Hafele
  Item: 400.70.910

  Product Title: Sliding Door Hardware, Hawa Aperto 40/F, set, For Cabinet Applications, Component Set

  Category: Sliding Door Hardware, Hawa Aperto 40/F, set, For Cabinet Applications, Component Set

  Item Details …

  - Smooth quiet operation

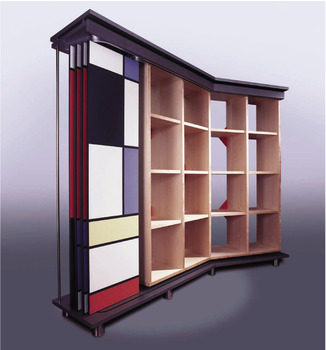

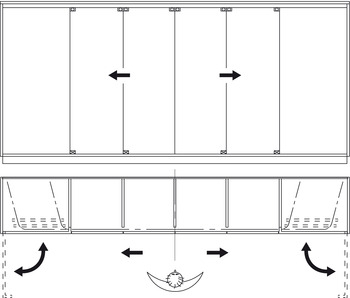

  - Up to 7 panels can be stored in a parking area on one side of the cabinet

  - Cabinet front is flush when closed

  - Use for left or right handed application

  - Custom and curved applications available. Contact our product specialist at 1-888-437-7477.

  - Number of doors : 1.00

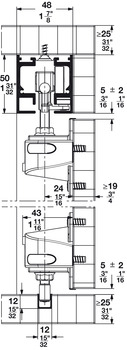

  - Running gear version : Straight running gear for Infront installation

  - For door thickness : 19?–?25 mm

  - For door width : 400?–?900 mm

  - For door weight : ?40 kg

  - Number of rollers : 2.00

  - Running gear guided by : Friction bearing

  - For door material : wood

  - For door thickness max. : 1"

  - For door height (inches) : ? 102 3/8"

  - For cabinet width : 15 3/4" - 35 7/16"

  - For door width (inches) : 15 3/4 - 35 7/16"

  - For door thickness min. : 3/4"

  - Door weight max. : 88 lbs

  - Height adjustment : ± 5/64"

  - Height adjustable :

  - Length (inch) : 2' 1 19/32"

  - Cabinet version : with parking area, with stackable door panels per parking area

  - Set : Set without tracks

  - Area of application : For 1 doors

  - For door height : ?2,600 mm

  - Material/finish : Running gear: Zinc alloyMounting plate: Zinc alloyRollers: Plastic

  - Adjustment facility : Height adjustment ±2 mm on running gear using screw

  - Installation : Running gear and guide for screw fixing

  - Door processing : for screw fixing

  - Model series : Aperto

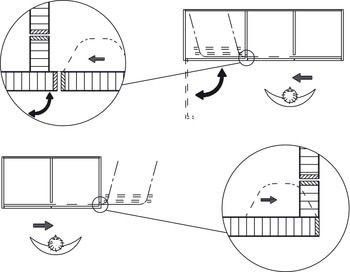

  - Type of opening : Parking

  - Number of doors per system max. : 7

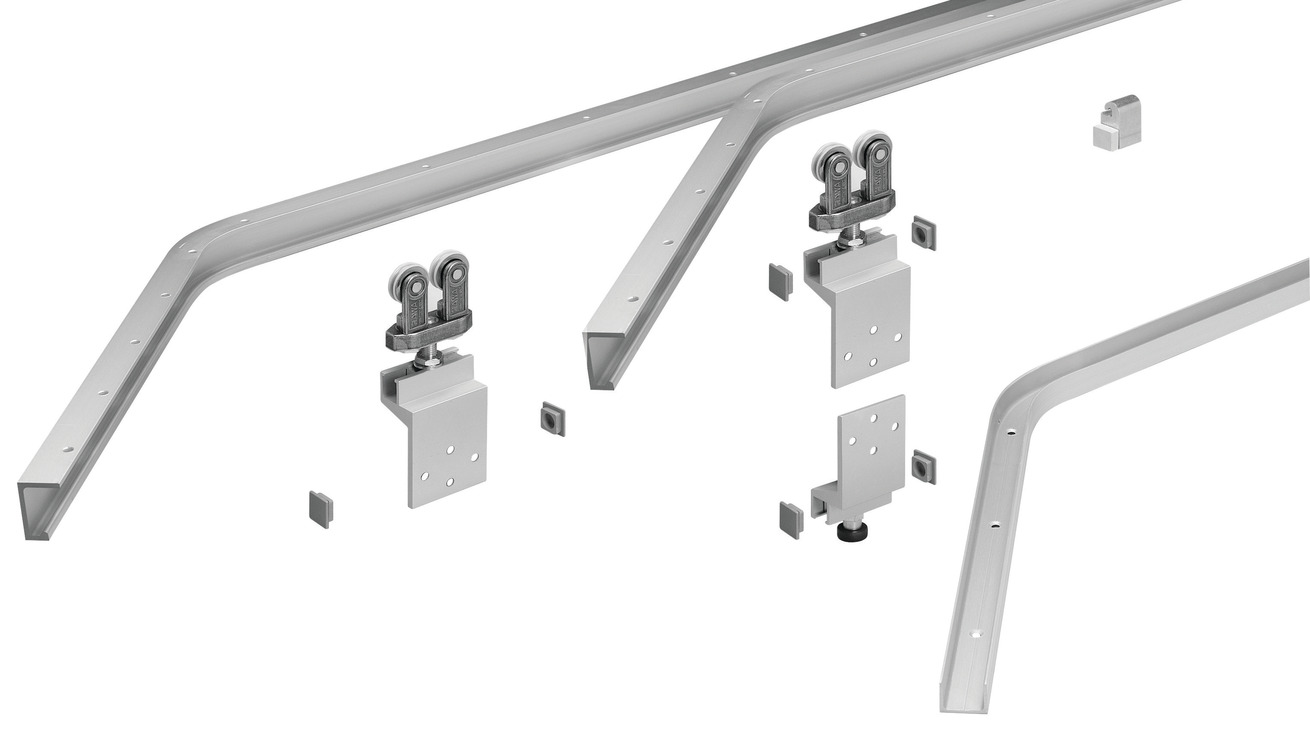

  - Supplied with:

  - 2 Running gears

  - 3 screw-on plates

  - 3 cover caps

  - 2 suspension bolts

  - 1 set of spacers

  - 1 alignment bracket

  - 1 guide

  - Installation instructions
