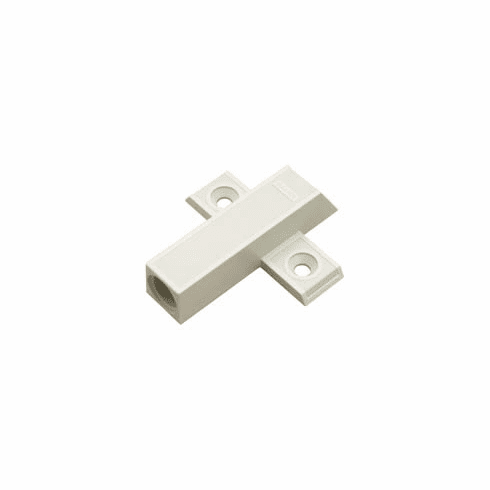

Hafele 356.11.462 Adapter for SMOVE, Overlay or Inset without Lip Salice, D064SNBR Beige

Product Information

• Description

  Manufacturer: Hafele
  Item: 356.11.462

  Product Title: Adapter for SMOVE, Overlay or Inset without Lip, Salice, D064SNBR Beige

  Category: Adapter for SMOVE, Overlay or Inset without Lip, Salice, D064SNBR Beige

  Item Details …

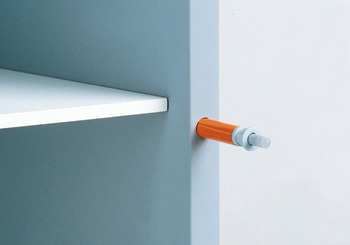

  - Adapters allow surface mounting, making on-site installation easy

  - Material : Plastic

  - Color/finish : Beige

  - Version : Without positioning aid

  - Model : 200

  - Area of application : For overlay or inset doors without lip

  - Suitable for : Without positioning aid

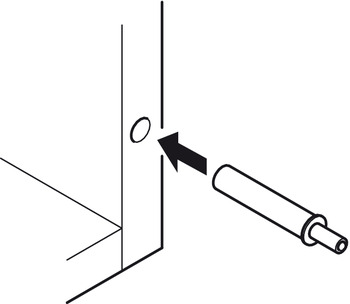

  - Installation : 1. Clean and de-grease the cabinet surface where the adapter is to be installed using denatured alcohol or an acetone based cleaner.2. Remove the protective strip from the adhesive.3. Place the adapter in position and apply a firm pressure for about one minute.4. Insert SMOVE into the adapter.5. Allow a period of 12 hours to elapse before using


  Additional Information …

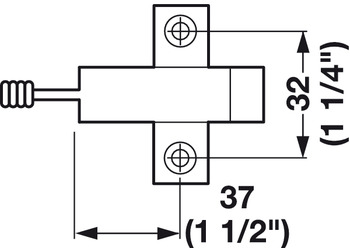

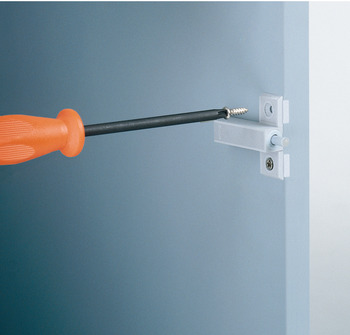

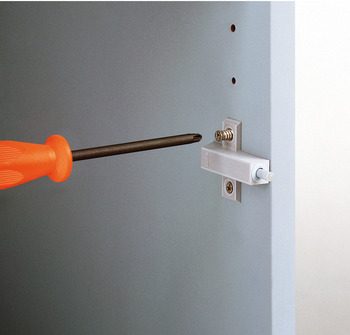

  Mounting: Chipboard screws ? 4 mm (drill hole 37 x 32) Without positioning aid

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.44



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.45-9.46.pdf

  Hafele 356.11.462, 356-11-462, 35611462, 356.11


  Specifications/Hafele Catalog - Page# FC9.79: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
