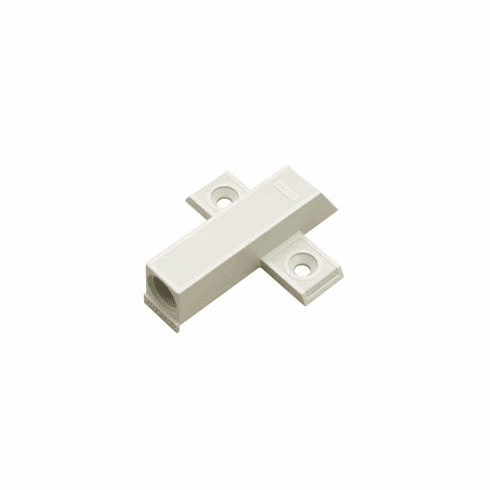

Hafele 356.11.460 Adapter for Smove, Overlay with Lip Salice, D064SNBN Beige

Product Information

• Description

  Manufacturer: Hafele
  Item: 356.11.460

  Product Title: Adapter for Smove, Overlay with Lip, Salice, D064SNBN Beige

  Category: Adapter for Smove, Overlay with Lip, Salice, D064SNBN Beige

  Item Details …

  - Adapters allow surface mounting, making on-site installation easy

  - Material : Plastic

  - Color/finish : Beige

  - Version : Without positioning aid

  - Model : 200

  - Area of application : For overlay doors with lip

  - Suitable for : With positioning aid

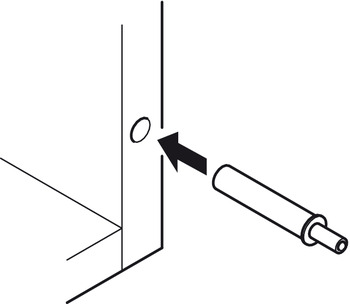

  - Installation : 1. Clean and de-grease the cabinet surface where the adapter is to be installed using denatured alcohol or an acetone based cleaner.2. Remove the protective strip from the adhesive.3. Place the adapter in position and apply a firm pressure for about one minute.4. Insert SMOVE into the adapter.5. Allow a period of 12 hours to elapse before using


  Additional Information …

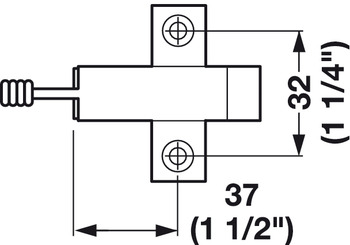

  Mounting: Chipboard screws ? 4 mm (drill hole 37 x 32) With positioning aid

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  Hafele 356.11.460, 356-11-460, 35611460, 356.11
