Hafele 348.35.805 Grass TIOMOS, 110 degree Opening Angle, Overlay Mounting Soft-close, screw-on, model F028138533223

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.35.805

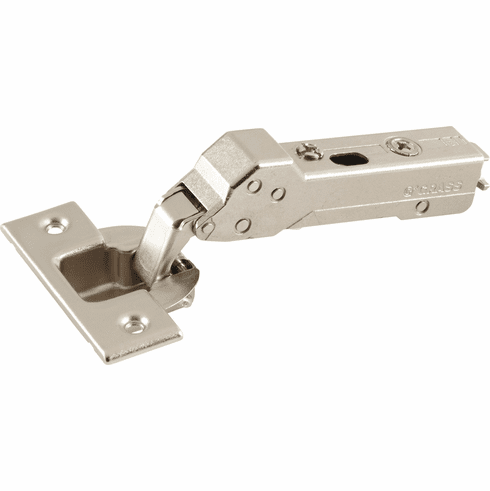

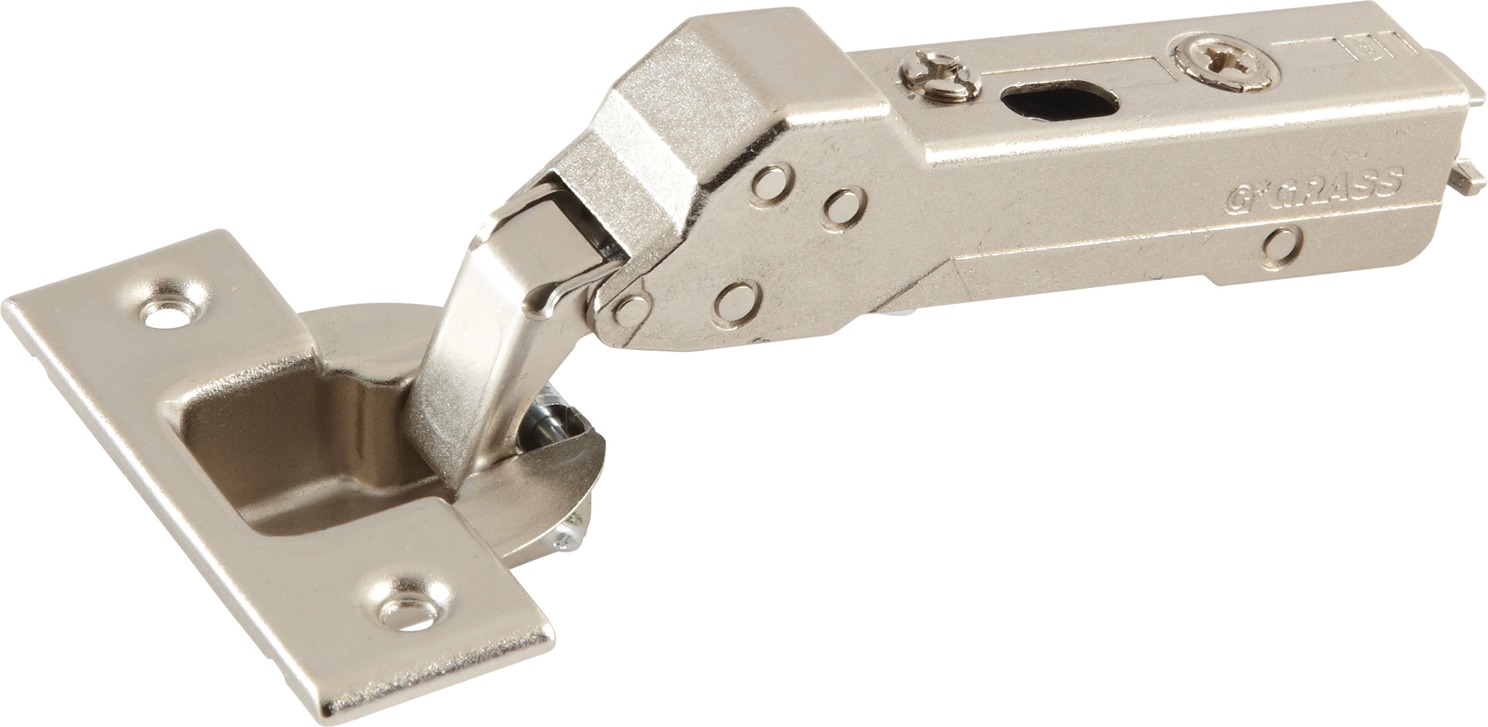

  Product Title: Concealed Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting, Soft-close, screw-on, model F028138533223

  Category: Concealed Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting,

  Item Details …

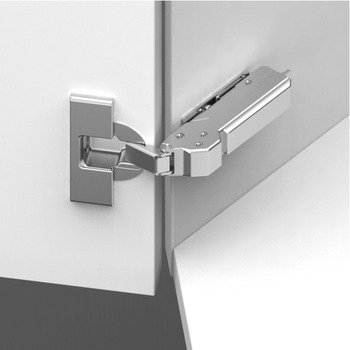

  - Area of application : For corner applications

  - Concealed hinge version : blind corner application

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 110°

  - Corner applications : 45°

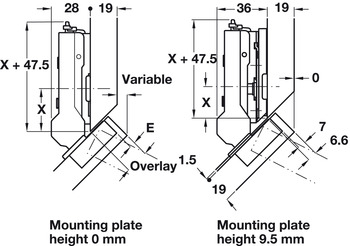

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate
