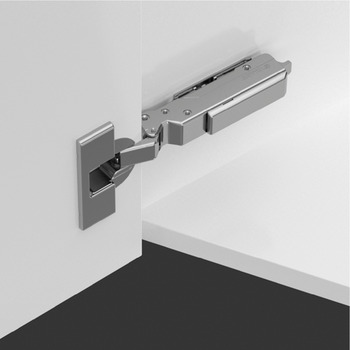

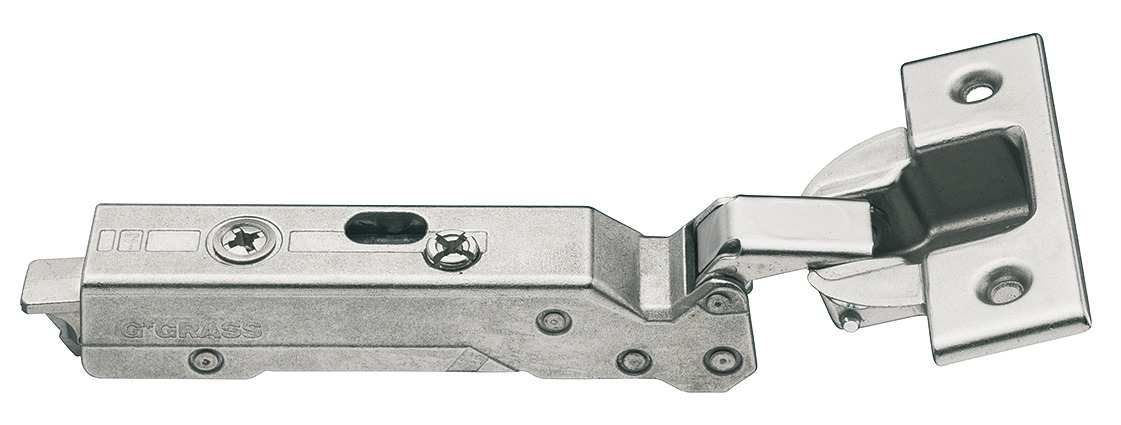

Hafele 348.35.809 Grass Tiomos Hinge, 120 degree opening, -45 degree angle corner, overlay, soft-close, screw, steel, nickel plated

Product Information

• Description

  Hafele 348.35.809 Concealed hinge, Tiomos 120°, overlay, for -45° corner applications




  Material : Cup: Steel, hinge arm: Zinc alloy

  Finish : Nickel plated

  Installation : Door to cabinet without tools (clip system)

  Adjustment : Side adjustment from -2 to +2 mm
  depth adjustment from -2 to +3 mm
  height adjustment max. ±2.5 mm depending on the mounting plate



  Optional items:
  Opening angle restraint 120°
