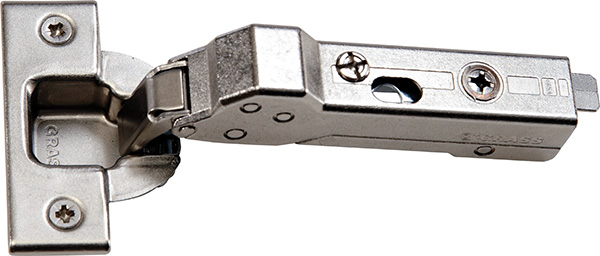

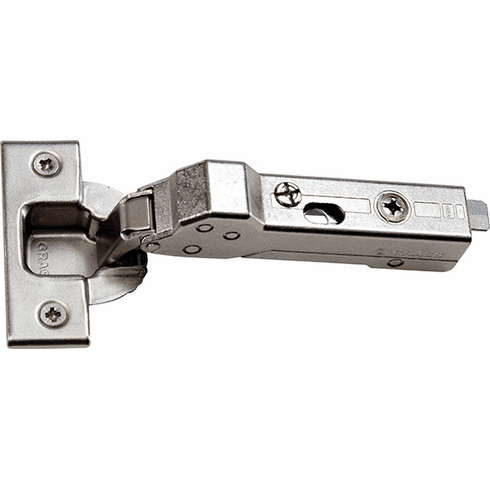

Hafele 348.35.615 Grass TIOMOS, 110 degree Opening Angle, Overlay Mounting Self-close, press-fit, model F045138481223

Product Information

• Description

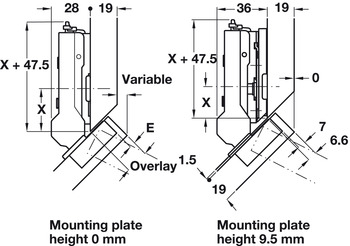

  Hafele 348.35.615 Grass TIOMOS, 110° Opening Angle, Overlay Mounting
  Self-close, press-fit, model F045138481223



  Opening angle : 110 °

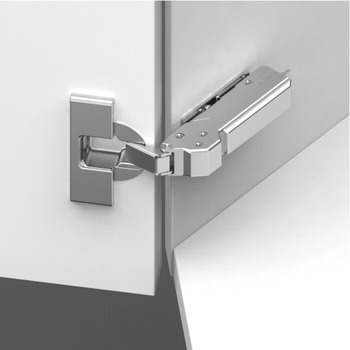

  Application : For corner applications

  For door thickness : Max: (61/64") 24 mm - Anything thicker, a trial mounting is recommended

  Material : Cup: Steel, hinge arm: Zinc alloy

  Finish : Nickel-plated



  Optional items:
  Cover cap


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.55-9.55.pdf

  Hafele 348.35.615, 348-35-615, 34835615, 348.35


  Specifications/Hafele Catalog - Page# FC9.53: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
