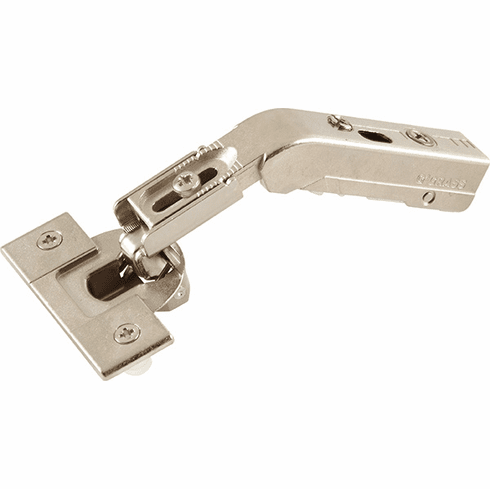

Hafele 348.29.650 Pie-Cut Corner Hinge, Grass TIOMOS, Self-Close, for Connecting Two Folding Doors Press-fit, model F045138518228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.29.650

  Product Title: Pie-Cut Corner Hinge, Grass TIOMOS, Self-Close, for Connecting Two Folding Doors, Press-fit, model F045138518228

  Category: Pie-Cut Corner Hinge, Grass TIOMOS, Self-Close, for Connecting Two Folding Doors,

  Item Details …

  - Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm.

  - Area of application : For connecting two folding doors

  - Version :

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Material : Zinc alloy

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5
