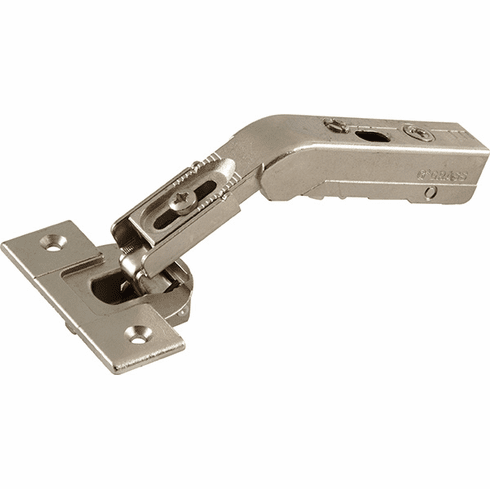

Hafele 348.29.600 Pie-Cut Corner Hinge, Grass TIOMOS, Self-Close, for Connecting Two Folding Doors Screw-on, model F045138517228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.29.600

  Product Title: Pie-Cut Corner Hinge, Grass TIOMOS, Self-Close, for Connecting Two Folding Doors, Screw-on, model F045138517228

  Category: Pie-Cut Corner Hinge, Grass TIOMOS, Self-Close, for Connecting Two Folding Doors,

  Item Details …

  - Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm.

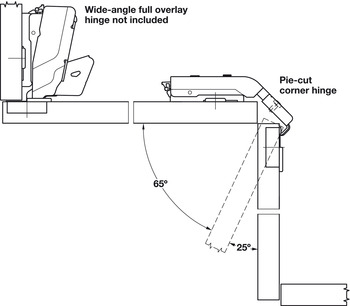

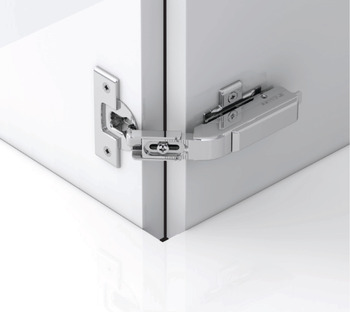

  - Area of application : For connecting two folding doors

  - Version : Without soft closing mechanism

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Material : Zinc alloy

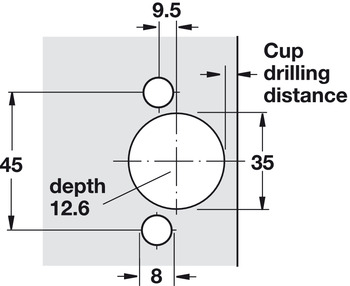

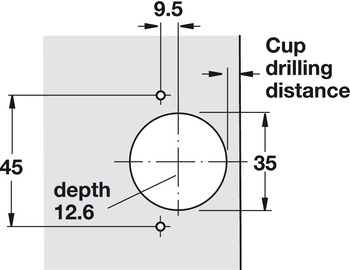

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.55



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.53-9.53.pdf

  Hafele 348.29.600, 348-29-600, 34829600, 348.29


  Specifications/Hafele Catalog - Page# FC9.54: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws (choose one):


  • Height adjustment via worm gear, Height 0 mm, model F058139746228 Height adjustment via worm gear, Height 2 mm, model F058139747228 Height adjustment via worm gear, Height 3 mm, model F058139748228

    348.38.511 348.38.512 348.38.513

    Click to order Click to order Click to order



  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Hinge Clip Protector
