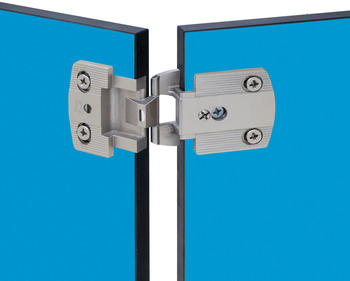

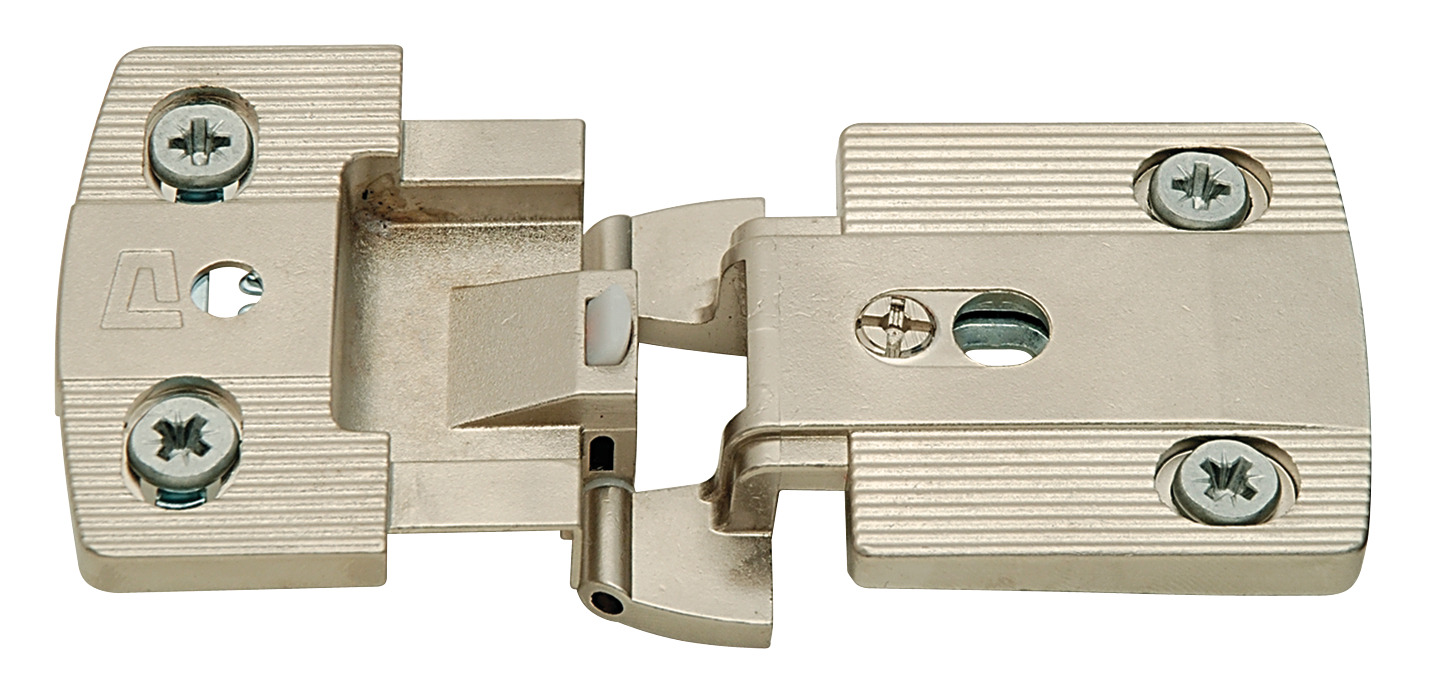

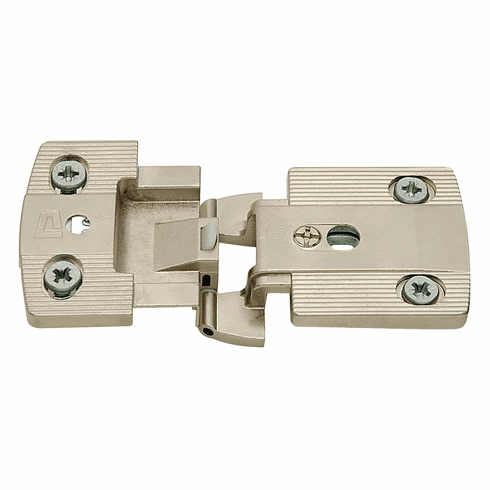

Hafele 344.75.760 Thin Panel Institutional Hinge, Aximat 300, Grade 1, Zinc Alloy 3/8" overlay

Product Information

• Description

  Manufacturer: Hafele
  Item: 344.75.760

  Product Title: Thin Panel Institutional Hinge, Aximat® 300, Grade 1, Zinc Alloy, Zinc alloy, 3D adjustable, for laminated (HPL) doors, 3/8" overlay

  Category: Thin Panel Institutional Hinge, Aximat® 300, Grade 1, Zinc Alloy, Zinc alloy, 3D adjustable, for laminated (HPL) doors

  Item Details …

  - maximum project quality according to ANSI grade 1 (100,000 cycles)

  - Specifically designed for thin panels such Phenolic material

  - Sleep sophisticated design, only 5 mm (3/16”) of knuckle is visible

  - 3D adjustment

  - Depth adjustment of ± 1mm is achieved with oblong holes

  - Height adjustment (up and down) of a ±2mm is on the door component

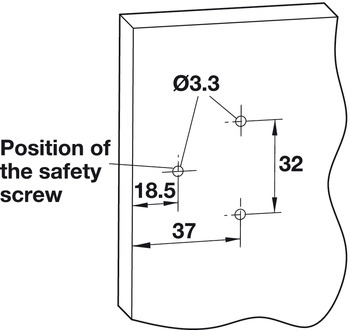

  - The “Safety Screw” can be pre-installed at any time as it does not effect the adjustments, however, it is required.

  - Integrated catch keeps doors closed, no additional magnetic catches required

  - During overlay (side to side) adjustment, the knuckle moves with the door preventing a gap between door’s edge and knuckle

  - Door overlay (side to side) adjustment is on the arm component as opposed to the cup component: offering continuous adjustment of +1/-2 mm in both directions

  - Tested in accordance with ANSI/BHMA Grade 1 standards

  - Area of application : For thin doorsfor laminate panels (HPL)

  - Concealed hinge version : Full overlay/half overlay mounting

  - For door material : laminate

  - Door processing for assembly : without

  - Material : Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 240°

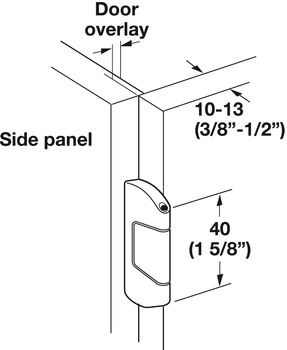

  - For door thickness : 10?–?13 mm

  - Knuckle diameter : 5.00 mm

  - Knuckle length : 47.00 mm

  - Gap : 6.00 mm

  - Adjustment facility : Side adjustment: 1 mm, Height adjustment: -2?–?2 mm, Height adjustment in cup part via eccentricDepth adjustment via horizontal slots in side component

  - Hinge arm fixing : For screw fixing

  - Supplied with:

  - Hinge

  - Fixing material (specially coated self-tapping screws)

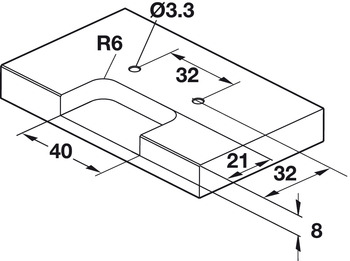

  - 1 twist drill bit Ø 3.3 mm per packing unit 50 pieces


  Additional Information …

  When inserting screws into Phenolic material, they may corrode because of the material’s internal properties. Screw holes should be slightly tapered in Phenolic material to assure a tight fit.
