Hafele 348.31.600 Concealed Hinge, Grass TIOMOS, 110 degree Opening Angle, Full Plus Overlay Mounting Self close, screw-on, model F045138457228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.31.600

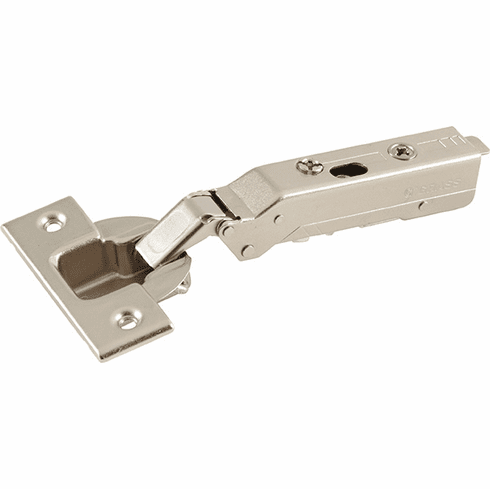

  Product Title: Concealed Hinge, Grass TIOMOS, 110º Opening Angle, Full Plus Overlay Mounting, for large door overlay up to 24 mm, Self close, screw-on, model F045138457228

  Category: Concealed Hinge, Grass TIOMOS, 110º Opening Angle, Full Plus Overlay Mounting, for large door overlay up to 24 mm

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - Optimum gap dimensions with door thickness of up to 24 mm

  - Area of application : For wooden doors

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 110°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system


  Additional Information …

  The dimensions specified in the drawing are calculated with a mounting plate distance 2 mm.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.51



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.50-9.50.pdf

  Hafele 348.31.600, 348-31-600, 34831600, 348.31


  Specifications/Hafele Catalog - Page# FC9.49: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
