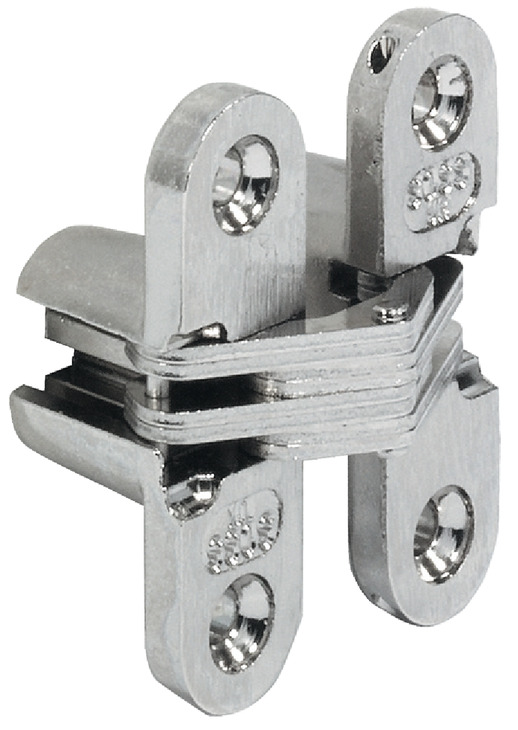

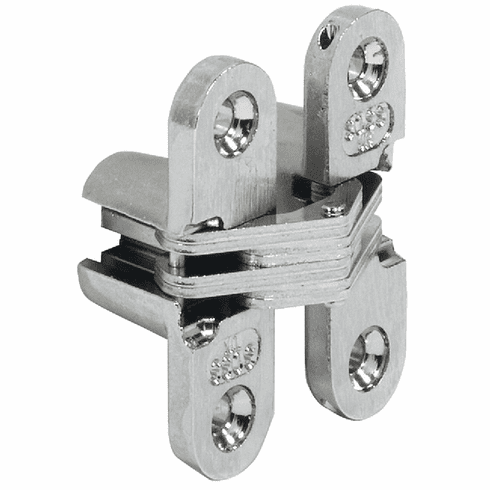

Hafele 341.07.527 Concealed Hinge, Soss, Invisible Hinge, 180 degree Opening Angle Wood Thickness 19-25mm, SOSS #203, Satin Brass

Product Information

• Description

  Hafele 341.07.527 Concealed Hinge, Soss, Invisible Hinge, 180° Opening Angle
  Wood Thickness 19-25mm, SOSS #203, Satin Brass



  Opening angle : 180°

  Material : Case: Zinc die-cast, Linkage: Steel

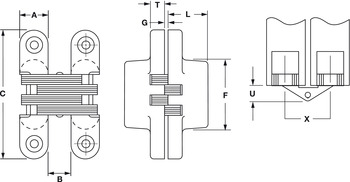

  A : 13

  B : 9.1

  C : 44.5

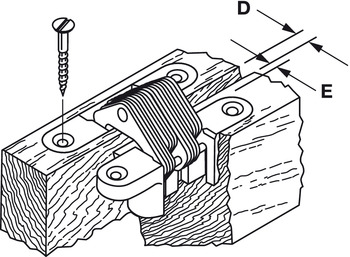

  D : 2.8

  E : 3.2

  F : 19.1

  G : 0.8

  L : 18.3

  T : 4.8

  U : 6.4

  X : 21.8





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.67-9.67.pdf

  Hafele 341.07.527, 341-07-527, 34107527, 341.07
