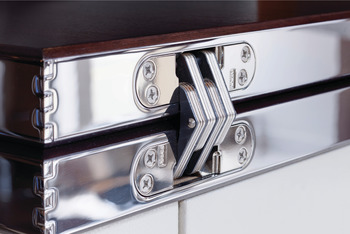

Hafele 341.07.536 Concealed Hinge, Soss, Invisible Hinge, 180 degree Opening Angle Wood Thickness 19-25mm SOSS #204, Satin Brass

Product Information

• Description

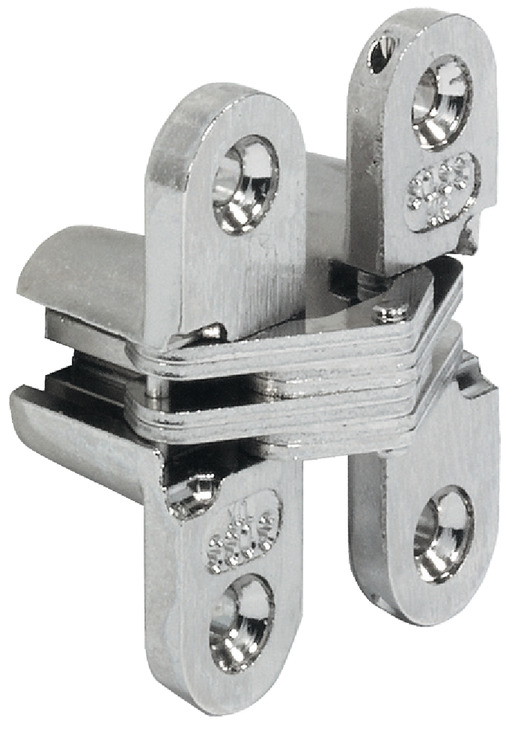

  Hafele 341.07.536 Concealed Hinge, Soss, Invisible Hinge, 180° Opening Angle
  Wood Thickness 19-25mm SOSS #204, Satin Brass



  Opening angle : 180°

  Material : Case: Zinc die-cast, Linkage: Steel

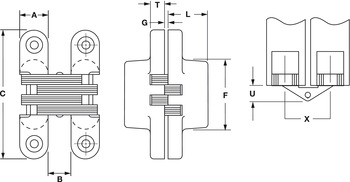

  A : 13

  B : 9.1

  C : 60.3

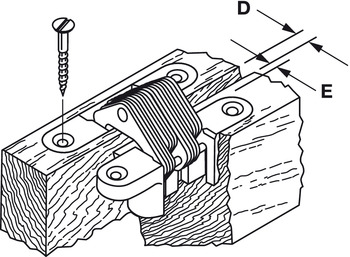

  D : 2.8

  E : 3.2

  F : 31.8

  G : 1.6

  L : 18.3

  T : 6.4

  U : 6.4

  X : 21.8





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.67-9.67.pdf

  Hafele 341.07.536, 341-07-536, 34107536, 341.07


  Specifications/Hafele Catalog - Page# FC9.65: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
