Hafele 341.07.518 Concealed Hinge, Soss, Invisible Hinge, 180 degree Opening Angle Wood Thickness: 13-16 mm, SOSS #101, Satin Brass

Product Information

• Description

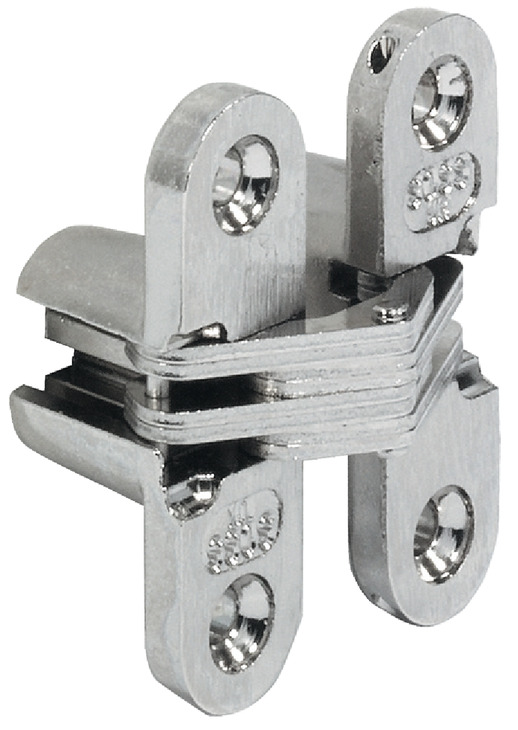

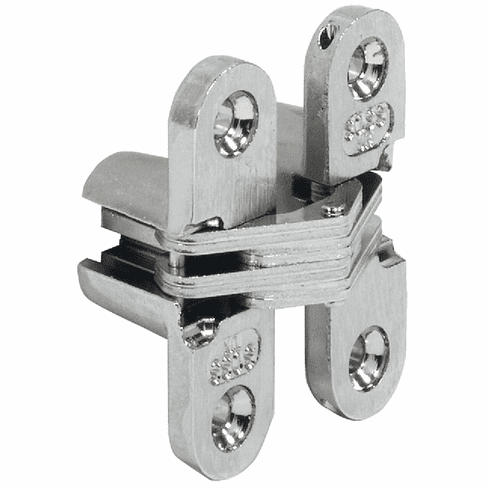

  Hafele 341.07.518 Concealed Hinge, Soss, Invisible Hinge, 180° Opening Angle
  Wood Thickness: 13-16 mm, SOSS #101, Satin Brass



  Opening angle : 180°

  Material : Case: Zinc die-cast, Linkage: Steel

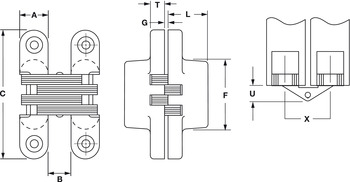

  A : 9.6

  B : 7.5

  C : 42.9

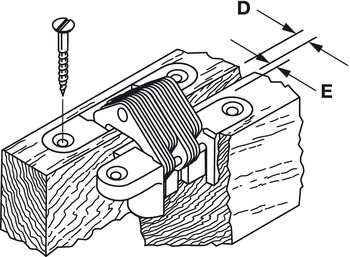

  D : 2.8

  E : 2.4

  F : 22.2

  G : 0.8

  L : 11.5

  T : 5.6

  U : 4.8

  X : 17.1





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.67-9.67.pdf

  Hafele 341.07.518, 341-07-518, 34107518, 341.07
