Hafele 329.67.002 Clip Mounting Plate, Duomatic SM, zinc alloy, with pre-mounted Euro screws 2 mm, BAPGR29/16

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.67.002

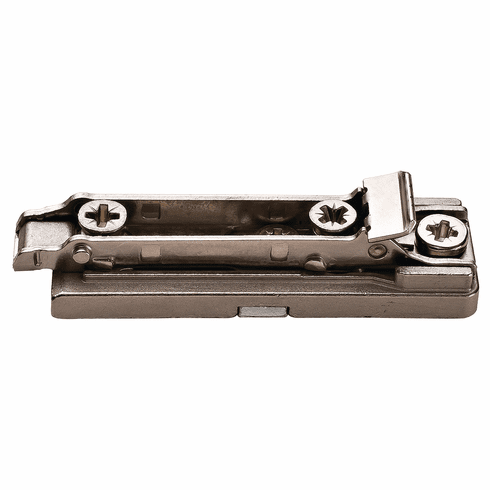

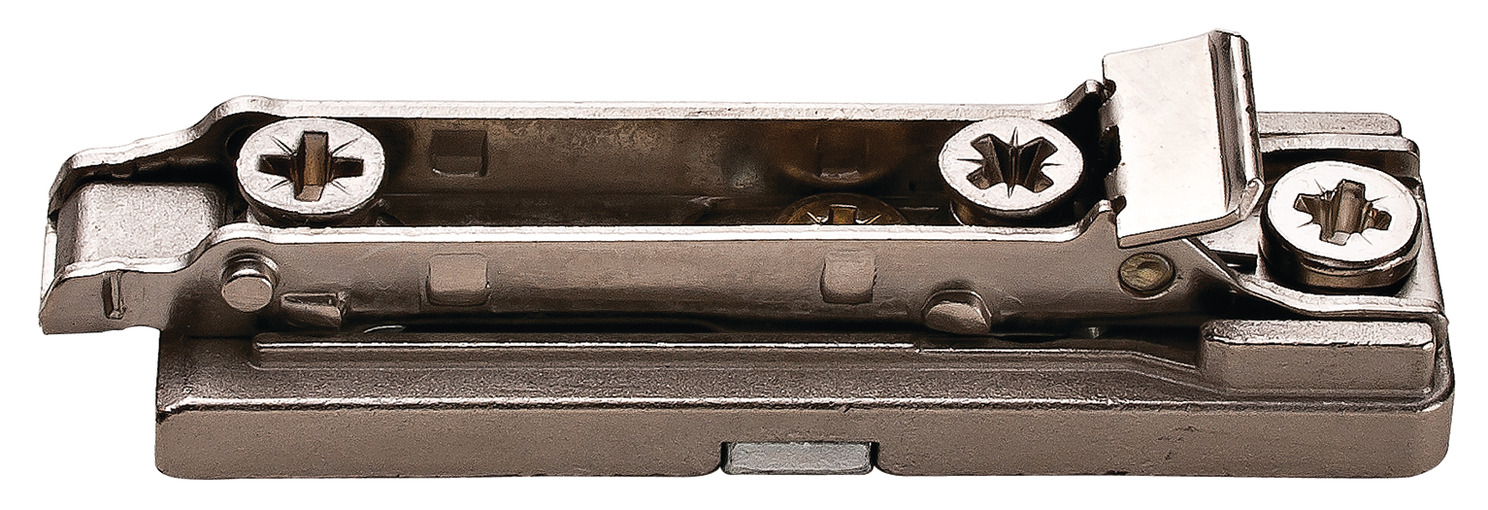

  Product Title: Clip Mounting Plate, Salice SM, zinc alloy, height adjustable via eccentric, Quick fixing system, pre-mounted 11mm Euro screws, 2D cam adjust, (appropriate height 0,2,3,6)mm, Model BAPGR_9/16, 2 mm, BAPGR29/16

  Category: Clip Mounting Plate, Salice SM, zinc alloy, height adjustable via eccentric, Quick fixing system, pre-mounted 11mm Euro screws, 2D cam adjust, (appropriate height 0,2,3,6)mm, Model BAPGR_9/16

  Item Details …

  - Area of application : Use with Lapis hinges

  - Material : Zinc alloy

  - Color/finish : nickel plated

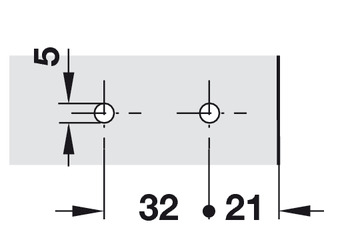

  - For drill hole Ø : 5.00 mm

  - Drilling depth : 11.50 mm

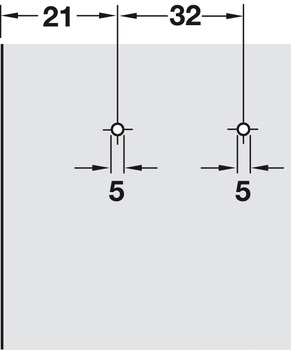

  - Screw distance : 32.00 mm

  - Edge distance : 21.00 mm

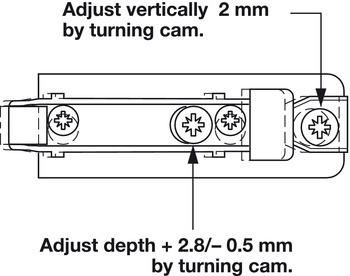

  - Adjustment facility : Height adjustment Via eccentric, Depth adjustment Via eccentric

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Model :

  - Manufacturer : Häfele

  - Model series : Metalla 510 SM

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.41



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.67.002, 329-67-002, 32967002, 329.67


  Specifications/Hafele Catalog - Page# FC9.44: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
