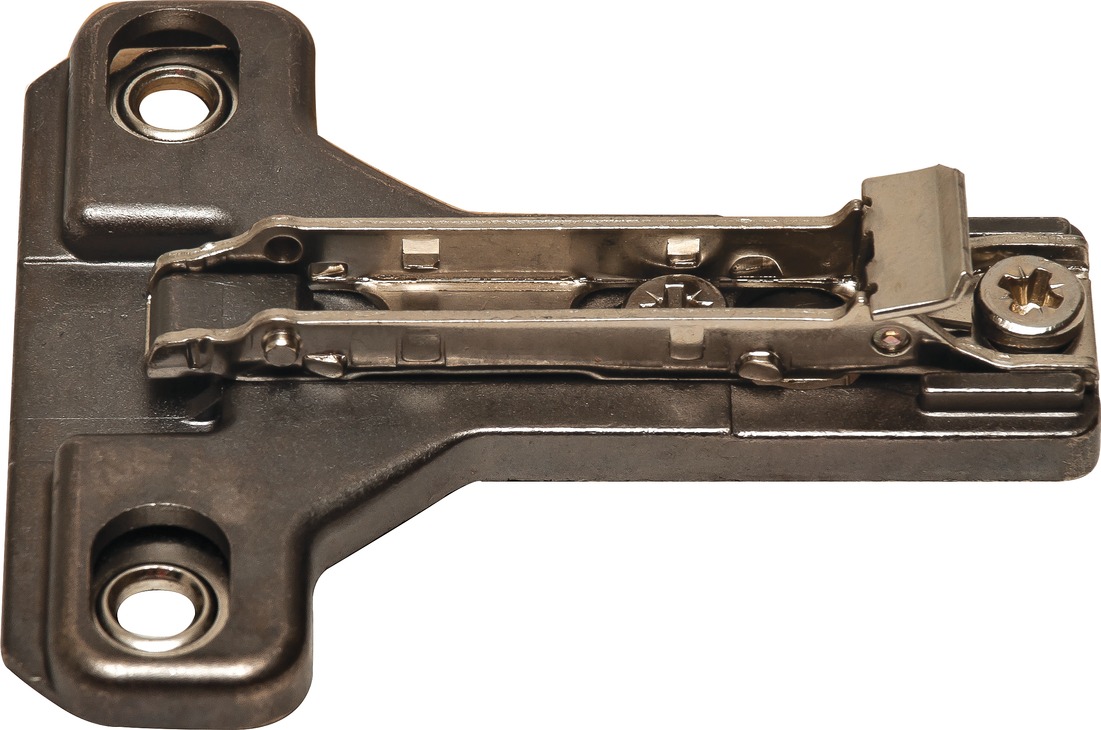

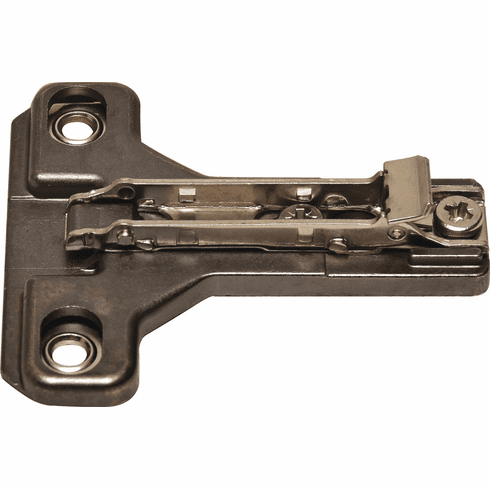

Hafele 329.64.574 Clip Face Frame Mounting Plate, Salice, Titanium Finish, Screw-Mounted 4 mm 1/2" Overlay, BAU3R46

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.64.574

  Product Title: Clip Face Frame Mounting Plate, Salice, Titanium Finish, Screw-Mounted, 4 mm 1/2" Overlay, BAU3R46

  Category: Clip Face Frame Mounting Plate, Salice, Titanium Finish, Screw-Mounted,

  Item Details …

  - Material : Steel

  - Color/finish : Titanium colored

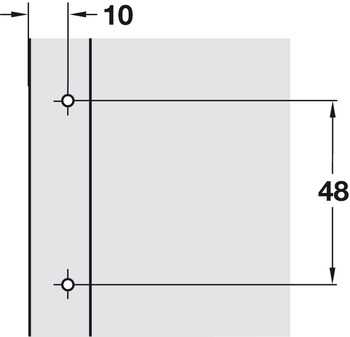

  - Screw distance : 48.00 mm

  - Edge distance : 10.00 mm

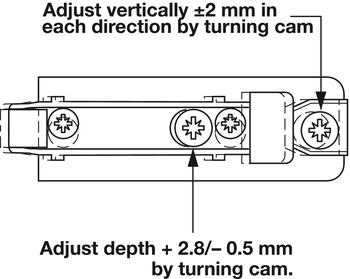

  - Adjustment facility : Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Manufacturer : Häfele

  - Model series : Salice

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.37



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.64.574, 329-64-574, 32964574, 329.64


  Specifications/Hafele Catalog - Page# FC9.26: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
