Hafele 329.67.000 Clip Mounting Plate, Duomatic SM, zinc alloy, with pre-mounted Euro screws distance D: 0 mm, drilling depth: 11.5 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.67.000

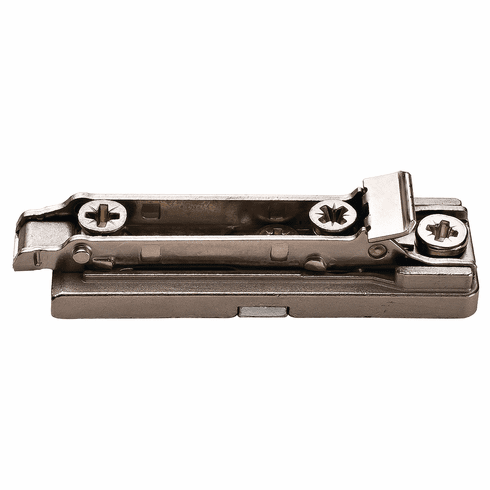

  Product Title: Clip Mounting Plate, Salice SM, zinc alloy, height adjustable via eccentric, Quick fixing system, pre-mounted 11mm Euro screws, 2D cam adjust, (appropriate height 0,2,3,6)mm, Model BAPGR_9/16, distance D: 0 mm, drilling depth: 11.5 mm

  Category: ,

  Item Details …

  - Area of application : Use with Lapis hinges

  - Material : Zinc alloy

  - Color/finish : nickel plated

  - For drill hole Diameter: : 5.00 mm

  - Drilling depth : 11.50 mm

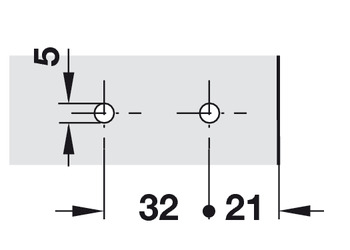

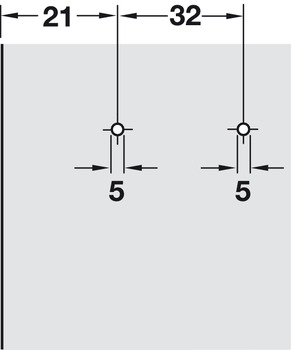

  - Screw distance : 32.00 mm

  - Edge distance : 21.00 mm

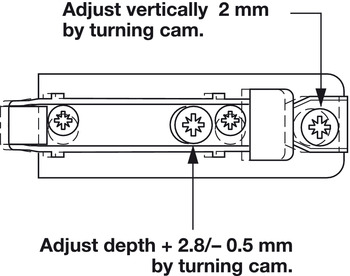

  - Adjustment facility : Height adjustment Via eccentric, Depth adjustment Via eccentric

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Model :

  - Manufacturer : Häfele

  - Model series : Metalla 510 SM
